2024 Color Coated Aluminum Coil
2024 Color Coated Aluminum Coil
2024 Color Coated Aluminum Coil
2024 Color Coated Aluminum Coil
2024 Color Coated Aluminum Coil
2024 Color Coated Aluminum Coil
2024 Color Coated Aluminum Coil
● MOQ: 1 Ton Each
● Available Color Coated Aluminum Coil Grades: EN-AW 1050, 1060, 1100, 3003, 3005, 3105, 5005, 5052, 6061, 6082, 6060, 6063, 7075, 7068, 2024
● Country of Origin: China
Email:contact@baosiruimetal.com
WhatsApp:+86 133 3877 6236
Leave a message online
Product Description

Aluminum can be recycled an infinite number of times, meaning it is an environmentally friendly metal. Yieh Corp. produces high-quality aluminum in many shapes, sizes, and grades, so you're always guaranteed to find what you need from us.

Color Coated Aluminum Coils and Sheets come in a wide range of colors, textures, and finishes, which can be applied in many fields. It is lightweight, attractive, and good at conducting heat. Color Coated Aluminum Coils and Sheets are the most economical choice for various industrial projects.

At BM METAL - Color Coated Aluminum Coil Manufacturer, we manufacture top-quality aluminum in various shapes, sizes, and grades, ensuring that you'll always find exactly what you're looking for.

  • Thickness: 0.25- 3mm or as required
  • Width: 20 - 1800mm or as required
  • Length: Roll Coil or as required
  • Any Size can be customized according to your needs
  • Surface: Anodized, Color Coated, Mill finished, Mirror etc.
  • Surface Protection: PE/PVC filming (if specified)
  • Certificates: ISO / SGS / BV
  • Available International Price Term:

    ① EXW China ② FOB China Port ③ CIF/CFR Destination Port etc.


Color Coated Aluminum Coil Dimensions

YS/T 431, GB/T 17748, Mill's standard, Mutually agreed standard, Base material conforms to GB/T 3880, ASTM B209 or EN 485.

Thickness:0.25mm0.5mm1.0mm1.5mmand so on
Width:1000mm/1200mm1219mm/4'/48''1250/1500mm1524/5'/60''and so on
Coil ID:405mm505mm605mmcan be customized
Thickness: 0.1 - 10mm                 Standard Size of Width x Length: 600mm x Roll / 1000mm x Roll / 1219mm x Roll (4' x Roll and 48'' x Roll) / 1250mm x Coil / 1500mm x Coil / 1524mm x Coil (5' x Coil and 60'' x Coil) or Any slit to width
The above are standard sizes;            For other specifications, please contact us;          Customization is available, and bulk orders come with discounts;
AlloyTemper
1xxx: 1050, 1050A, 1060, 1100★Temper H12, H14, H16, H18, H22, H24, H32 and H34, for base material are provided as per client’s request and mutually agreed.
3xxx: 3003, 3004, 3005, 3105
5xxx: 5005, 5052, 5754, 5083, 5086, 5182, 5049, 5251, 5454

Coating of Prepainted Aluminum Coil
PaintPE (Polyester), PVDF
Coating ThicknessFront side: ≥ 18 microns(PE), ≥25 microns(PVDF)             Back side: 8~10 microns (PE or EP)
Coating ColorRAL colors, or by confirmed sample (customized)

>>Welcome To Order And Look Forward To Working With You! For Product Details, Please Contact Us To Quote Our Best Price<<

Product Details


Chemical Composition

Aluminum Materials Grades Chemical Components

Alloy %Si %Mg %Mn %Cu %Fe %Cr %Zn %Ti %Others %Al
EN AW-1050 A 0.25Max 0.05Max 0.05Max 0.05Max 0.40Max – 0.07Max 0.05Max – 99.5 Min
EN AW-1070 A 0.20Max 0.03Max 0.03Max 0.03Max 0.25Max – 0.07Max 0.03Max – 99.7 Min
EN AW-1100 Si+Fe 0.95 Max – 0.05 Max 0.05 – 0.20 – – 0.10 Max 0.05 Max – 99.0 Min
EN AW-2011 0.40 Max – – 5.00 – 6.00 0.70 Max – 0.30 Max – – Remainder
EN AW-2014 0.50 – 1.20 0.20 – 0.80 0.40 – 1.20 3.90 – 5.00 0.70 Max 0.10 Max 0.25 Max 0.15 Max – Remainder
EN AW-2024 0.50 Max 1.20 -1.80 0.30 – 0.90 3.80 – 4.90 0.50 Max 0.10 Max 0.25 Max 0.15 Max 0.15 Max Remainder
EN AW-3003 0.60 Max – 1.00 – 1.50 0.05 – 0.20 0.70 Max – 0.10 Max – 0.15 Max Remainder
EN AW-3103 0.50 Max 0.30 Max 0.90 – 1.50 0.10 Max 0.70 Max 0.10 Max 0.20 Max 0.10 Max – Remainder
EN AW-6101A 0.30 – 0.7 0.40 – 0.90 0.03 Max 0.05 Max 0.40 Max – – – 0.10 Max Remainder
EN AW-6005 0.60 – 0.90 0.40 – 0.60 0.10 Max 0.10 Max 0.35 Max 0.10 Max 0.10 Max 0.10 Max – Remainder
EN AW-6351 0.70 – 1.30 0.40 – 0.80 0.40 – 0.80 0.10 Max 0.50 Max – 0.20 Max 0.20 Max 0.15 Max Remainder
EN AW-6060 0.30 – 0.60 0.35 – 0.60 0.10 Max 0.10 Max 0.10 – 0.30 0.05 Max 0.15 Max 0.10 Max – Remainder
EN AW-6061 0.40 – 0.80 0.80 – 1.20 0.15 Max 0.15 – 0.40 0.70 Max 0.04 – 0.35 0.25 Max 0.15 Max – Remainder
EN AW-6063 0.20 – 0.60 0.45 – 0.90 0.10 Max 0.10 Max 0.35 Max 0.10 Max 0.10 Max 0.10 Max – Remainder
EN AW-6082 0.70 – 1.30 0.60 -1.20 0.40 – 1.00 0.10 Max 0.50 Max 0.25 Max 0.20 Max 0.10 Max – Remainder

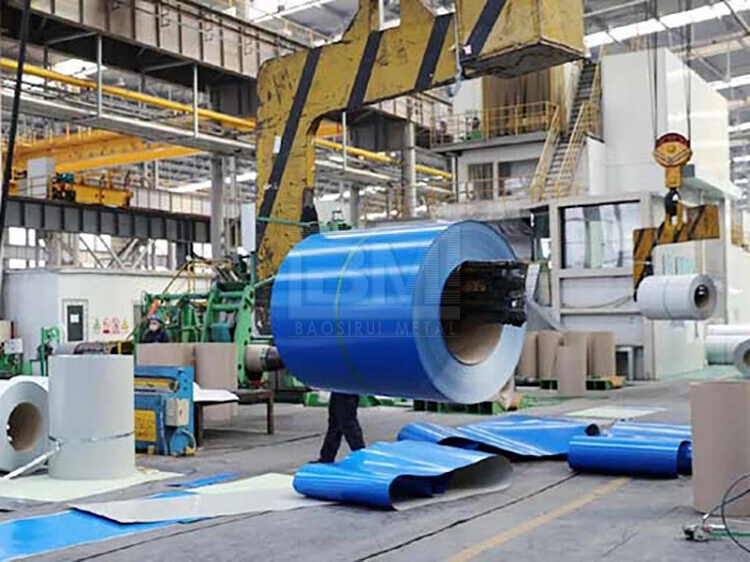

Factory workshop
