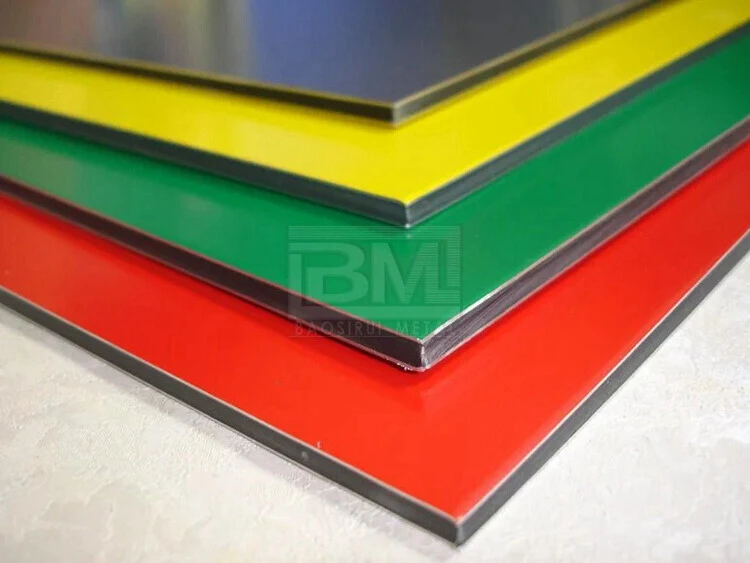

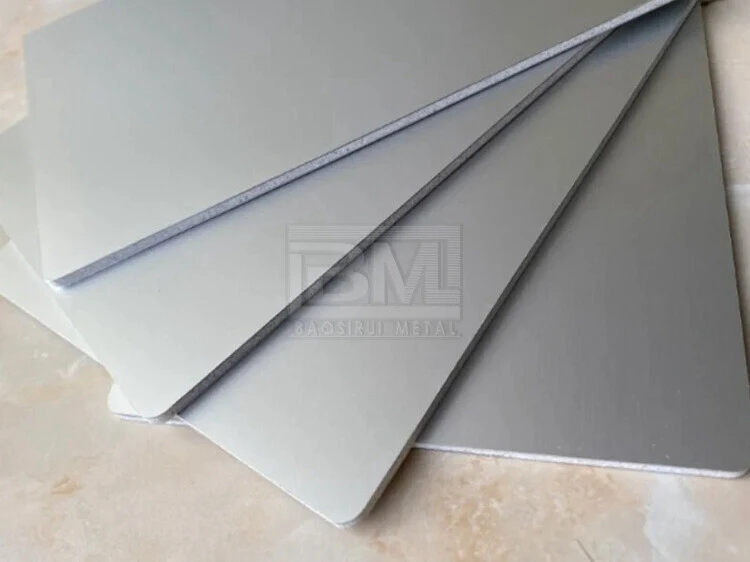

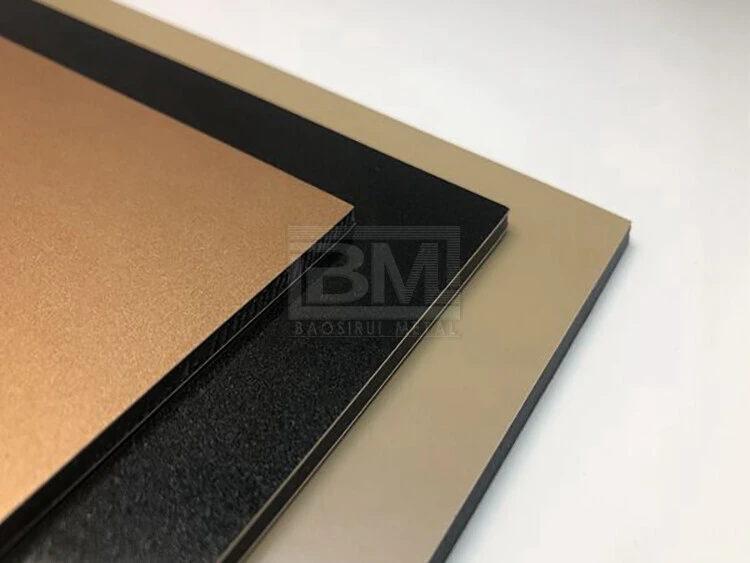

ACP Aluminum Composite Panels
ACP Aluminum Composite Panels
ACP Aluminum Composite Panels
ACP Aluminum Composite Panels
ACP Aluminum Composite Panels
ACP Aluminum Composite Panels
ACP Aluminum Composite Panels
● MOQ: 1 Ton Each
● Available ACP Aluminum Composite Panels Grades: EN-AW 1050, 1060, 1070, 1100, 3003, 3005, 3105, 5005, 5052, 5754, 5083, 5086, 5182, 5049, 5251, 5454, 6061, 6082, 6060, 6063, 7075, 7068, 8011, 2024
● Country of Origin: China
Email:contact@baosiruimetal.com
WhatsApp:+86 133 3877 6236
Leave a message online
Product Description
Product NameACP/ACM Aluminum Composite Plate
StandardASTM E84,ASTM D1781,EN 13501-1,EN 438-9,GB/T 17748-2016,GB/T 22412
Panel Thickness2mm,3mm,4mm,5mm,6mm
Panel Width1220mm,1250mm,1500mm etc.
Panel Length2440mm(normal),up to 6500mm
Bending Strength50-120 Mpa
Bond Strength> 0.8 N/mm² to 5 N / mm²
Coefficient of thermal expansion22x10 ^ -6 / ℃ to 35x10 ^ -6 / ℃
Aluminum Thickness0.3mm,0.4mm,0.5mm
Aluminum MaterialAA1100,AA3003,AA5005
Aluminum CoatingPE,PVDF,FEVE
CoreRecycle PE Core/Fireproof PE Core/Unbreakable PE Core
SurfacePainted,Brushed,Hairline,Polished,Wooden,Marble,Mirror etc.

Approximate weight of the ACP panel(aluminum+core)

Panel ThicknessAluminum sheet + Core
2mm5-5.5 kg/m²
3mm5.5-6.5 kg/m²
4mm6.8-8 kg/m²
5-6mm8-10 kg/m²

Product Structure

20240606155231322

Applications


Product Details


Chemical Composition

Aluminum Materials Grades Chemical Components

Alloy %Si %Mg %Mn %Cu %Fe %Cr %Zn %Ti %Others %Al
EN AW-1050 A 0.25Max 0.05Max 0.05Max 0.05Max 0.40Max – 0.07Max 0.05Max – 99.5 Min
EN AW-1070 A 0.20Max 0.03Max 0.03Max 0.03Max 0.25Max – 0.07Max 0.03Max – 99.7 Min
EN AW-1100 Si+Fe 0.95 Max – 0.05 Max 0.05 – 0.20 – – 0.10 Max 0.05 Max – 99.0 Min
EN AW-2011 0.40 Max – – 5.00 – 6.00 0.70 Max – 0.30 Max – – Remainder
EN AW-2014 0.50 – 1.20 0.20 – 0.80 0.40 – 1.20 3.90 – 5.00 0.70 Max 0.10 Max 0.25 Max 0.15 Max – Remainder
EN AW-2024 0.50 Max 1.20 -1.80 0.30 – 0.90 3.80 – 4.90 0.50 Max 0.10 Max 0.25 Max 0.15 Max 0.15 Max Remainder
EN AW-3003 0.60 Max – 1.00 – 1.50 0.05 – 0.20 0.70 Max – 0.10 Max – 0.15 Max Remainder
EN AW-3103 0.50 Max 0.30 Max 0.90 – 1.50 0.10 Max 0.70 Max 0.10 Max 0.20 Max 0.10 Max – Remainder
EN AW-6101A 0.30 – 0.7 0.40 – 0.90 0.03 Max 0.05 Max 0.40 Max – – – 0.10 Max Remainder
EN AW-6005 0.60 – 0.90 0.40 – 0.60 0.10 Max 0.10 Max 0.35 Max 0.10 Max 0.10 Max 0.10 Max – Remainder
EN AW-6351 0.70 – 1.30 0.40 – 0.80 0.40 – 0.80 0.10 Max 0.50 Max – 0.20 Max 0.20 Max 0.15 Max Remainder
EN AW-6060 0.30 – 0.60 0.35 – 0.60 0.10 Max 0.10 Max 0.10 – 0.30 0.05 Max 0.15 Max 0.10 Max – Remainder
EN AW-6061 0.40 – 0.80 0.80 – 1.20 0.15 Max 0.15 – 0.40 0.70 Max 0.04 – 0.35 0.25 Max 0.15 Max – Remainder
EN AW-6063 0.20 – 0.60 0.45 – 0.90 0.10 Max 0.10 Max 0.35 Max 0.10 Max 0.10 Max 0.10 Max – Remainder
EN AW-6082 0.70 – 1.30 0.60 -1.20 0.40 – 1.00 0.10 Max 0.50 Max 0.25 Max 0.20 Max 0.10 Max – Remainder
