5052 Aluminum Wire
5052 Aluminum Wire
5052 Aluminum Wire
5052 Aluminum Wire
5052 Aluminum Wire
5052 Aluminum Wire
5052 Aluminum Wire
● MOQ: 1 Ton Each
● Available Aluminum Wire Grades: AL99.5%, AL99.7%, AL99.9%, AL99.99%, 1350, EN-AW 1050, 3003, 5052, 5754, 5083, 5086, 6061, 6082, 6063, 7075, 7068, 2024
● Country of Origin: China
Email:contact@baosiruimetal.com
WhatsApp:+86 133 3877 6236
Leave a message online
Product Description

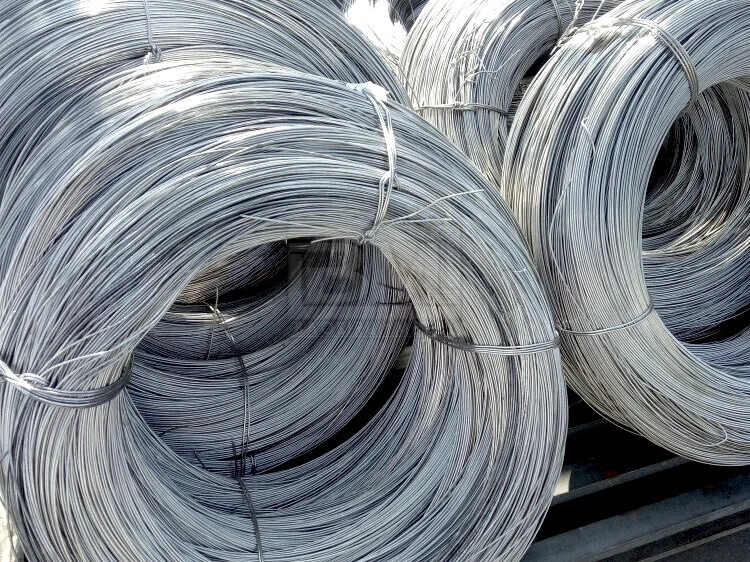

Bare Aluminum Wire is lightweight, ductile, conductive, and recyclable. With these properties, Bare Aluminum Wire can be used in different industries, such as aerospace, automobile, construction, and transportation..

At BM METAL - Aluminum Wire Rod Manufacturer, we manufacture top-quality aluminum in various shapes, sizes, and grades, ensuring that you'll always find exactly what you're looking for.

  • Temper: F, O, H112, T3, T351, T4, T5, T6, T651
  • Diameter: 0.8mm~6mm
  • Length: Roll or Any Size can be customized
  • Surface: Anodized, Mill finished, Polished etc.
  • Aluminum Purity Grade: 99.5%, 99.9% 99.99% etc.
  • Form & Image: Round Wire Rod
  • Certificates: ISO / SGS / BV
  • Available International Price Term:

    ① EXW China ② FOB China Port ③ CIF/CFR Destination Port


5052 Aluminum Wire Dimensions
ModelSize (Diameter)Parameter
A40430.8mm-6.0mmTensile Strength: 200 MPa Elongation: 10% 500g/roll
A40470.8mm-6.0mmTensile Strength: 150 MPa Elongation: 5% 500g/roll
A53560.8mm-6.0mmTensile Strength: 280 MPa Elongation: 8% 500g/roll
A51830.8mm-6.0mmTensile Strength: 260 MPa Elongation: 6% 500g/roll
A60610.8mm-6.0mmTensile Strength: 290 MPa Elongation: 12% 500g/roll
The above are standard sizes;          For other specifications, please contact us;          Customization is available, and bulk orders come with discounts.
Available Aluminum Grades Specification:
AlloyTemper
 2xxx: 2014, 2024     7xxx: 7075 T4, T6, T3511, T4511
1xxx: 1050, 1070, 1100, 1350     5xxx: 5083, 5052, 5005O, H112
6xxx: 6005, 6060, 6061, 6063, 6082, 6463T4, T5, T6, T66, T6511
  • The above are standard sizes; For other specifications, please contact us;
  • Customization is available, and bulk orders come with discounts;

  • >>Welcome To Order And Look Forward To Working With You! For Details, Pls Contact Us To Quote Our Best Price<<

Product Details


Chemical Composition

Aluminum Materials Grades Chemical Components

Alloy %Si %Mg %Mn %Cu %Fe %Cr %Zn %Ti %Others %Al
EN AW-1050 A 0.25Max 0.05Max 0.05Max 0.05Max 0.40Max – 0.07Max 0.05Max – 99.5 Min
EN AW-1070 A 0.20Max 0.03Max 0.03Max 0.03Max 0.25Max – 0.07Max 0.03Max – 99.7 Min
EN AW-1100 Si+Fe 0.95 Max – 0.05 Max 0.05 – 0.20 – – 0.10 Max 0.05 Max – 99.0 Min
EN AW-2011 0.40 Max – – 5.00 – 6.00 0.70 Max – 0.30 Max – – Remainder
EN AW-2014 0.50 – 1.20 0.20 – 0.80 0.40 – 1.20 3.90 – 5.00 0.70 Max 0.10 Max 0.25 Max 0.15 Max – Remainder
EN AW-2024 0.50 Max 1.20 -1.80 0.30 – 0.90 3.80 – 4.90 0.50 Max 0.10 Max 0.25 Max 0.15 Max 0.15 Max Remainder
EN AW-3003 0.60 Max – 1.00 – 1.50 0.05 – 0.20 0.70 Max – 0.10 Max – 0.15 Max Remainder
EN AW-3103 0.50 Max 0.30 Max 0.90 – 1.50 0.10 Max 0.70 Max 0.10 Max 0.20 Max 0.10 Max – Remainder
EN AW-6101A 0.30 – 0.7 0.40 – 0.90 0.03 Max 0.05 Max 0.40 Max – – – 0.10 Max Remainder
EN AW-6005 0.60 – 0.90 0.40 – 0.60 0.10 Max 0.10 Max 0.35 Max 0.10 Max 0.10 Max 0.10 Max – Remainder
EN AW-6351 0.70 – 1.30 0.40 – 0.80 0.40 – 0.80 0.10 Max 0.50 Max – 0.20 Max 0.20 Max 0.15 Max Remainder
EN AW-6060 0.30 – 0.60 0.35 – 0.60 0.10 Max 0.10 Max 0.10 – 0.30 0.05 Max 0.15 Max 0.10 Max – Remainder
EN AW-6061 0.40 – 0.80 0.80 – 1.20 0.15 Max 0.15 – 0.40 0.70 Max 0.04 – 0.35 0.25 Max 0.15 Max – Remainder
EN AW-6063 0.20 – 0.60 0.45 – 0.90 0.10 Max 0.10 Max 0.35 Max 0.10 Max 0.10 Max 0.10 Max – Remainder
EN AW-6082 0.70 – 1.30 0.60 -1.20 0.40 – 1.00 0.10 Max 0.50 Max 0.25 Max 0.20 Max 0.10 Max – Remainder
