Aluminum Block

● MOQ: 1 Ton Each
● Available Aluminum Block Grades: EN-AW 1050, 1060, 1100, 2024, 2A12, 2011, 3003, 5052, 5083, 5754, 5454, 5A05, 5A06, 6061, 6063, 6082, 7050, 7075, 7005, 7020
● Country of Origin: China

Email:contact@baosiruimetal.com

WhatsApp:+86 133 3877 6236

Leave a message online

Product Description

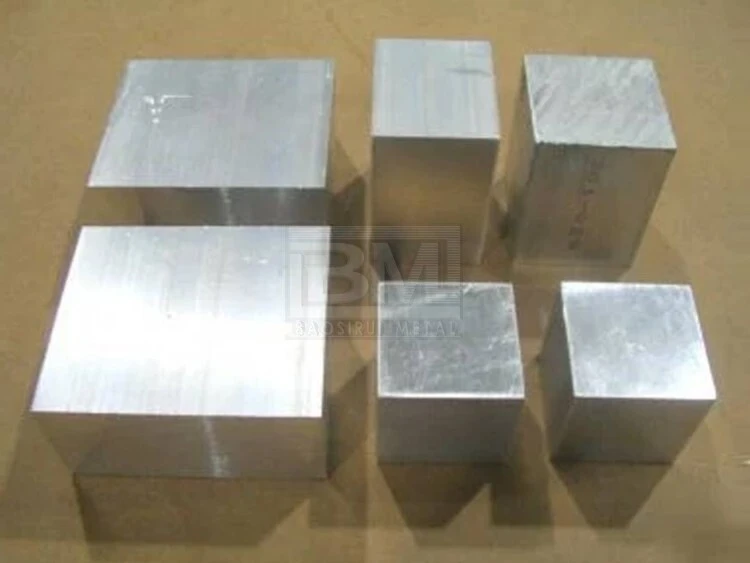

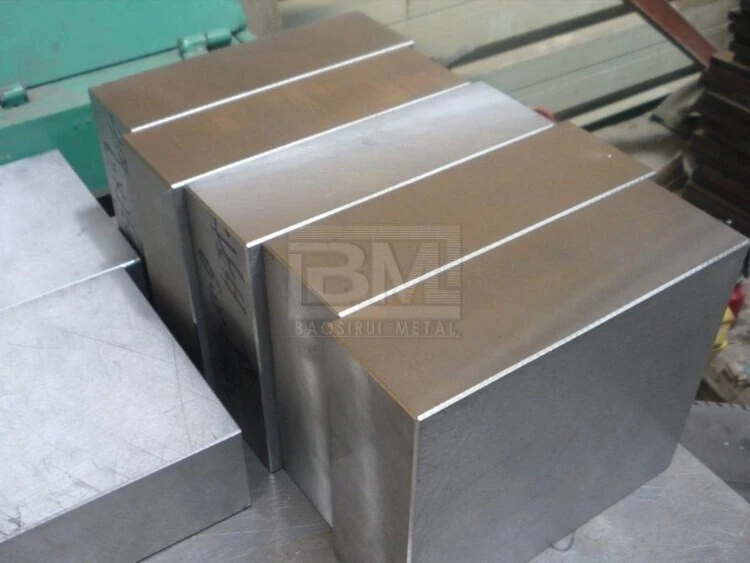

The solid aluminum block is a rectangular material with a rectangular cross section and uniform thickness obtained by our company through pressure processing (shearing or sawing) of pure aluminum plates or aluminum alloy plates.

covering major alloy grades such as 1050, 6061, 7075, 2024, etc., and provides a variety of size options to meet the needs of industries such as aerospace, automotive manufacturing, etc. The stock specifications are complete and can quickly respond to customers' customized needs.

Main alloys	1050, 1060, 1100, 2024, 2A12, 2011, 3003, 5052, 5083, 5754, 5454, 5A05, 5A06, 6061, 6063, 6082, 7050, 7075, 7005, 7020 etc.
Thickness	8-600mm
Width	More than 200mm width or according to customer requirements.
Length	Within 16m or according to customer requirements.
Detailed size	Can be customized according to customer samples or drawings.
Standard	JIS, DIN, BS, ASTM, SAE etc.
Test Certificate	As per EN 10204 3.1, Third Party Inspection, Buyer Inspection, Mill Test Certificate.
Processing technology	Aluminum blocks can be precision cut, punched, drilled, turned, etc.
Packaging	Standard export cartons or pallets, or according to customer requirements.
The main purpose	It is used to produce molds, process spare parts and other products, and is widely used in electronics, machinery, molds, precision machining and other fields.

Popular sizes of 2024 aluminum block

Thickness(mm)	Width(mm)	Length(mm)	Thickness(inch)	Width(inch)	Length(inch)
8 mm	50 mm	2000 mm	0.31 in	1.97 in	78.74 in
10 mm	100 mm	3000 mm	0.39 in	3.94 in	118.11 in
20 mm	200 mm	4000 mm	0.79 in	7.87 in	157.48 in
25 mm	250 mm	6000 mm	0.98 in	9.84 in	236.22 in
30 mm	300 mm	8000 mm	1.18 in	11.81 in	314.96 in
50 mm	400 mm	10000 mm	1.97 in	15.75 in	393.70 in
100 mm	500 mm	12000 mm	3.94 in	19.69 in	472.44 in
200 mm	800 mm	15000 mm	7.87 in	31.50 in	590.55 in
300 mm	1000 mm	16000 mm	11.81 in	39.37 in	629.92 in
400 mm	800 mm	Customized Length	15.75 in	31.50 in	Customized Length

Product Details

Chemical Composition

Aluminum Materials Grades Chemical Components

Alloy	%Si	%Mg	%Mn	%Cu	%Fe	%Cr	%Zn	%Ti	%Others	%Al
EN AW-1050 A	0.25Max	0.05Max	0.05Max	0.05Max	0.40Max	–	0.07Max	0.05Max	–	99.5 Min
EN AW-1070 A	0.20Max	0.03Max	0.03Max	0.03Max	0.25Max	–	0.07Max	0.03Max	–	99.7 Min
EN AW-1100	Si+Fe 0.95 Max	–	0.05 Max	0.05 – 0.20	–	–	0.10 Max	0.05 Max	–	99.0 Min
EN AW-2011	0.40 Max	–	–	5.00 – 6.00	0.70 Max	–	0.30 Max	–	–	Remainder
EN AW-2014	0.50 – 1.20	0.20 – 0.80	0.40 – 1.20	3.90 – 5.00	0.70 Max	0.10 Max	0.25 Max	0.15 Max	–	Remainder
EN AW-2024	0.50 Max	1.20 -1.80	0.30 – 0.90	3.80 – 4.90	0.50 Max	0.10 Max	0.25 Max	0.15 Max	0.15 Max	Remainder
EN AW-3003	0.60 Max	–	1.00 – 1.50	0.05 – 0.20	0.70 Max	–	0.10 Max	–	0.15 Max	Remainder
EN AW-3103	0.50 Max	0.30 Max	0.90 – 1.50	0.10 Max	0.70 Max	0.10 Max	0.20 Max	0.10 Max	–	Remainder
EN AW-6101A	0.30 – 0.7	0.40 – 0.90	0.03 Max	0.05 Max	0.40 Max	–	–	–	0.10 Max	Remainder
EN AW-6005	0.60 – 0.90	0.40 – 0.60	0.10 Max	0.10 Max	0.35 Max	0.10 Max	0.10 Max	0.10 Max	–	Remainder
EN AW-6351	0.70 – 1.30	0.40 – 0.80	0.40 – 0.80	0.10 Max	0.50 Max	–	0.20 Max	0.20 Max	0.15 Max	Remainder
EN AW-6060	0.30 – 0.60	0.35 – 0.60	0.10 Max	0.10 Max	0.10 – 0.30	0.05 Max	0.15 Max	0.10 Max	–	Remainder
EN AW-6061	0.40 – 0.80	0.80 – 1.20	0.15 Max	0.15 – 0.40	0.70 Max	0.04 – 0.35	0.25 Max	0.15 Max	–	Remainder
EN AW-6063	0.20 – 0.60	0.45 – 0.90	0.10 Max	0.10 Max	0.35 Max	0.10 Max	0.10 Max	0.10 Max	–	Remainder
EN AW-6082	0.70 – 1.30	0.60 -1.20	0.40 – 1.00	0.10 Max	0.50 Max	0.25 Max	0.20 Max	0.10 Max	–	Remainder
