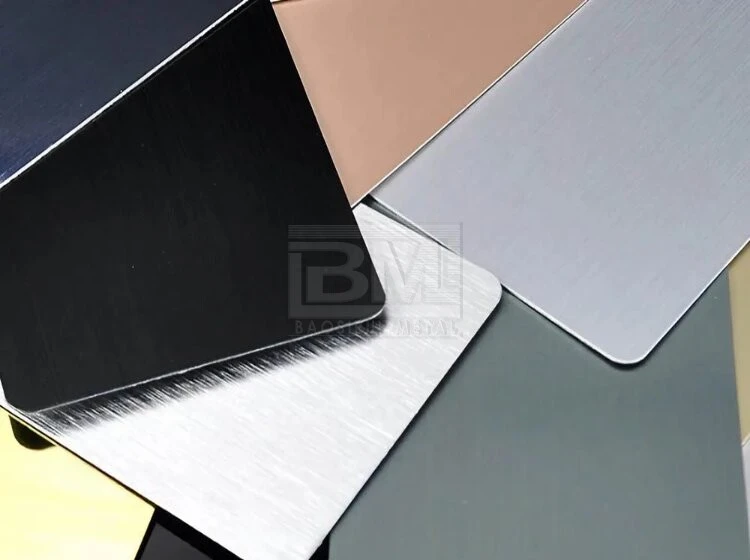

Anodized Aluminum Sheet Plate
Anodized Aluminum Sheet Plate
Anodized Aluminum Sheet Plate
● MOQ: 1 Ton Each
● Available Aluminum Sheet Grades: EN-AW 1050, 1060, 1070, 1100, 3003, 3005, 3105, 5005, 5052, 5754, 5083, 5086, 5182, 5049, 5251, 5454, 6061, 6082, 6060, 6063, 7075, 7068, 8011, 2024
● Country of Origin: China
Email:contact@baosiruimetal.com
WhatsApp:+86 133 3877 6236
Leave a message online
Product Description

BAOSIRUI  Metal Corporation is a leading anodized aluminum sheet manufacturer and supplier.

Aluminum plate at anode is oxidized, and a thin layer of aluminum oxide is formed on the surface, and the thickness thereof is 5 to 20 μm, and the hard anodized film is 60 to 200 μm. The anodized aluminum plate improves the hardness and wear resistance, up to 250-500 kg/mm 2 , good heat resistance, the hardness of the hard anodized film is as high as 2320K, excellent insulation, and high breakdown voltage 2000V, enhanced corrosion resistance, does not corrode in thousands of hours in the salt fog of ω=0.03NaCl. The oxide film has a large number of micropores in the thin layer, which can adsorb various lubricants, and is suitable for manufacturing engine cylinders or other wear-resistant parts; the membrane microporous adsorption ability can be colored into various beautiful colors. Non-ferrous metals or alloys thereof (such as aluminum, magnesium and their alloys) can be anodized.

If you want to know more about our anodized aluminum sheet, brushed aluminum sheet, mirror aluminum sheet, please feel free to contact us. We will reply to you within 24 hours.


style=

style=


Technical Information of Anodized Aluminum Sheet:


1) Processing method: Anodization of aluminum sheet refers to the process of generating aluminum oxide film on the surface of an aluminum sheet through electrolysis when the aluminum sheet is put in the electrolyte as the anode.

2) Manufacturing

Racking → Degreasing → Rinsing → Alkaline corrosion → Rinsing → Neutralizing → Rinsing → Anodizing → Rinsing → Pore sealing → Rinsing → Off rack → Testing → Packing



Chemical element:


1050:

style=




3003:

style=




5005:

style=




5052:

style=




6063:

style=



Product Details



Chemical Composition

Aluminum Materials Grades Chemical Components

Alloy %Si %Mg %Mn %Cu %Fe %Cr %Zn %Ti %Others %Al
EN AW-1050 A 0.25Max 0.05Max 0.05Max 0.05Max 0.40Max – 0.07Max 0.05Max – 99.5 Min
EN AW-1070 A 0.20Max 0.03Max 0.03Max 0.03Max 0.25Max – 0.07Max 0.03Max – 99.7 Min
EN AW-1100 Si+Fe 0.95 Max – 0.05 Max 0.05 – 0.20 – – 0.10 Max 0.05 Max – 99.0 Min
EN AW-2011 0.40 Max – – 5.00 – 6.00 0.70 Max – 0.30 Max – – Remainder
EN AW-2014 0.50 – 1.20 0.20 – 0.80 0.40 – 1.20 3.90 – 5.00 0.70 Max 0.10 Max 0.25 Max 0.15 Max – Remainder
EN AW-2024 0.50 Max 1.20 -1.80 0.30 – 0.90 3.80 – 4.90 0.50 Max 0.10 Max 0.25 Max 0.15 Max 0.15 Max Remainder
EN AW-3003 0.60 Max – 1.00 – 1.50 0.05 – 0.20 0.70 Max – 0.10 Max – 0.15 Max Remainder
EN AW-3103 0.50 Max 0.30 Max 0.90 – 1.50 0.10 Max 0.70 Max 0.10 Max 0.20 Max 0.10 Max – Remainder
EN AW-6101A 0.30 – 0.7 0.40 – 0.90 0.03 Max 0.05 Max 0.40 Max – – – 0.10 Max Remainder
EN AW-6005 0.60 – 0.90 0.40 – 0.60 0.10 Max 0.10 Max 0.35 Max 0.10 Max 0.10 Max 0.10 Max – Remainder
EN AW-6351 0.70 – 1.30 0.40 – 0.80 0.40 – 0.80 0.10 Max 0.50 Max – 0.20 Max 0.20 Max 0.15 Max Remainder
EN AW-6060 0.30 – 0.60 0.35 – 0.60 0.10 Max 0.10 Max 0.10 – 0.30 0.05 Max 0.15 Max 0.10 Max – Remainder
EN AW-6061 0.40 – 0.80 0.80 – 1.20 0.15 Max 0.15 – 0.40 0.70 Max 0.04 – 0.35 0.25 Max 0.15 Max – Remainder
EN AW-6063 0.20 – 0.60 0.45 – 0.90 0.10 Max 0.10 Max 0.35 Max 0.10 Max 0.10 Max 0.10 Max – Remainder
EN AW-6082 0.70 – 1.30 0.60 -1.20 0.40 – 1.00 0.10 Max 0.50 Max 0.25 Max 0.20 Max 0.10 Max – Remainder
