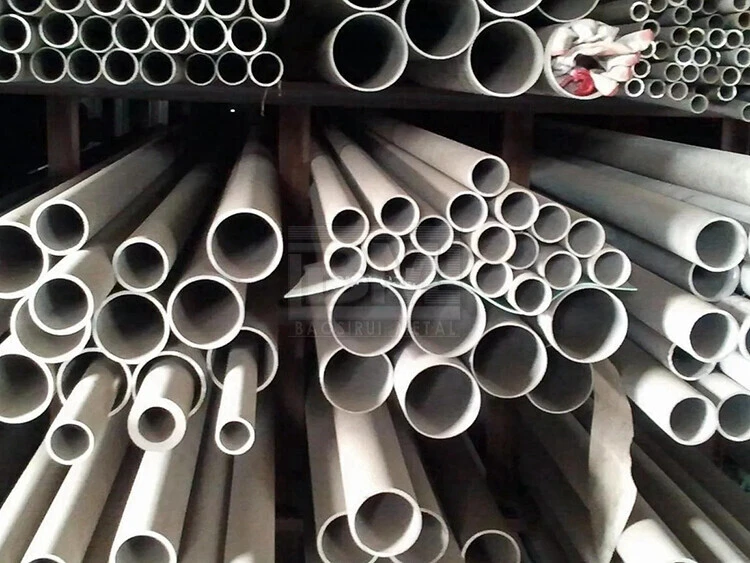

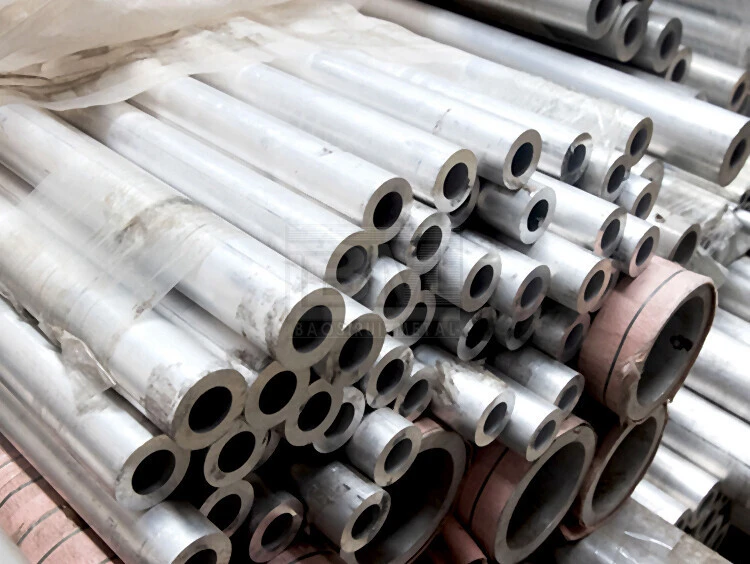

Aircraft Aluminum Pipe Tube
Aircraft Aluminum Pipe Tube
Aircraft Aluminum Pipe Tube
Aircraft Aluminum Pipe Tube
Aircraft Aluminum Pipe Tube
Aircraft Aluminum Pipe Tube
Aircraft Aluminum Pipe Tube
● Specifications：AMS WW-T-700/3, AMS 4088, AMS 4086, AMS QQA-200/3, AMS 4152, AMS WW-T-700/2, AMS 4065, AMS WW-T-700/4, AMS 4070, AMS 4071, AMS-T-7081, MIL-T-7081, AMS 4081, AMS 4082, AMS 4083, ABS5151, BAMS517-001, AMS QQ-A-200/8, AMS 4150, AMS WW-T-700/7 AMS QQA-200/11
● Country of Origin: China
● MOQ: 1 Ton Each
Email:contact@baosiruimetal.com
WhatsApp:+86 133 3877 6236
Leave a message online
Product Description

7075 /2024 Aluminum Pipe Tube the advantages of its are lightweight, excellent electrical and thermal conductivity, high corrosion resistance and ductility.

BM METAL Aluminium Corporation is one of the premier aluminum tube suppliers and manufacturers in China, offering products for various application types, ranging from HVAC/R and heat exchange to mechanical and framing. Our high-strength, corrosion-resistant, high-quality aluminum tube/pipe is available in multiple-grade aluminum alloys, rectangular, round, or square forms, and comes in various widths, and thicknesses. And we also accept customization to the size and external shape required by customers.

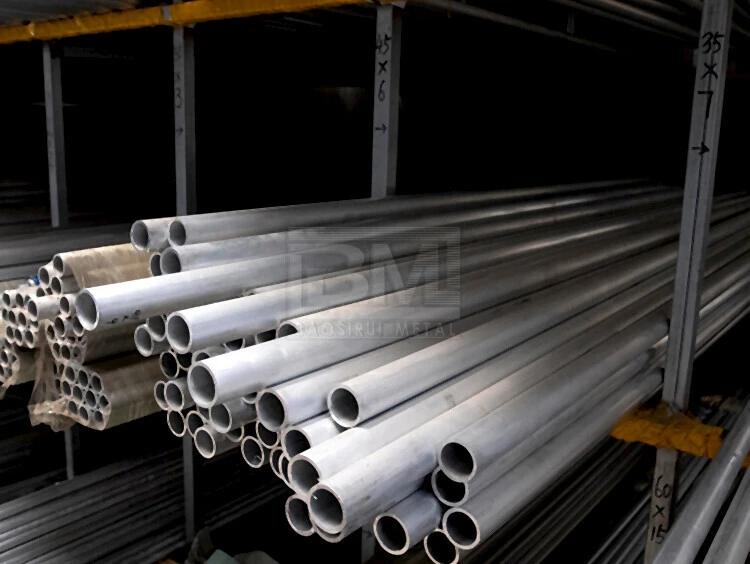

Aluminum Round Pipe




Aluminum Square Pipe




Aluminum Flat Pipe




Aluminum Profiled Tube

At BM METAL - Extruded Aluminum Round Tube Manufacturer, we manufacture top-quality aluminum in various shapes, sizes, and grades, ensuring that you'll always find exactly what you're looking for.

  • Outside Diameter: 8.0~500mm for Round
  • Outside Diameter: 10x10mm~250x250mm for Square
  • Outside Diameter: 10x20mm~600x300mm for Rectangle
  • Wall Thickness: 0.5~80mm
  • Length: 1,000~6,000mm or Any Size can be customized
  • Surface: Anodized, Mill finished, Polished etc.
  • Production Process: Extruded, Cold Drawn
  • Form & Image: Round, Square, Rectangle
  • Certificates: ISO / SGS / BV
  • Available International Price Term:

    ① EXW China ② FOB China Port ③ CIF/CFR Destination Port etc.


Extruded Aluminum Round Tube Available Size Range
Size Range OD (mm)Wall Thickness (mm)Length (mm)
8-500mm or can be customized0.5-80mm or can be customize500-6000mm or can be customize
Pipe Size DesignationSchedule NumberOutside Dia (inches)Inside Dia. (inches)Approx.Wt. (Ibs./lineal ft.)
1/240   0.840.6220.294
1/280   0.840.5460.376
3/440   1.050.8240.391
3/480   1.050.7420.51
140   1.3151.0490.581
180   1.3150.9570.751
1–1/440   1.661.380.786
1-1/480   1.661.2781.037
1–1/240   1.91.610.94
1-1/280   1.91.51.256
210   2.3752.1570.913
240   2.3752.0671.264
280   2.3751.9391.737
2–1/240   2.8752.4692.004
2-1/280   2.8752.3232.65
340   3.53.0682.621
380   3.52.93.547
3–1/240   43.5483.151
3-1/280   43.3644.326
440   4.54.0263.733
480   4.53.8265.183
540   5.5635.0475.057
580   5.5634.8137.188
640   6.6256.0656.564
680   6.6255.7619.884
840   8.6257.9819.878
880   8.6257.62515.01
1040   10.7510.0214.004


2024 Aluminum
2024DensityUltimate Tensile StrengthYield Tensile StrengthFatigue Strength
Imperial0.1 lb/in363,800 psi42,100 psi20,000 psi
Metric2.78 g/cc440 MPa290 MPa138 MPa
Mechanical Information T3
2024Modulus of ElasticityShear ModulusShear StrengthMelting Point
Imperial10,600 ksi4,060 ksi41,000 psi935-1,180 F
Metric73.1 GPa28 GPa283 MPa502-638 C
Electrical ConductivityHardness Rockwell/BrinellElongation at break percentagePoissons RatioMachinability Percentage
30% IACSB75/120100.3370


7075 Aluminum
7075DensityUltimate Tensile StrengthYield Tensile StrengthFatigue Strength
Imperial0.102 lb/in383,000/67,000 psi73,000/56,000 psi23,000/21,800 psi
Metric2.81 g/cc527/462 MPa503/386 MPa159/150 MPa
7075Modulus of ElasticityShear ModulusShear StrengthMelting Point
Imperial10,400 ksi3,900 ksi48,000/43,500 psi890-1,175 F
Metric72 GPa26.9 GPa331/300 MPa477-635 C
Electrical ConductivityHardness Rockwell/BrinellElongation at break percentagePoissons RatioMachinability Percentage
33% IACSB87/1509-70/80.3370
9 @ -321 F/-196 C
70 @ 700 F/371 C


7075 Chemistry Information
ElementPercentage
Al90
Cr0.18 - 0.28
Cu1.2 - 2
Fe0.5 max
Mg2.1 - 2.9
Mn0.3 max
Si0.4 max
Ti0.2 max
Zn5.1 - 6.1
Zr+Ti0.25 max

>>Welcome To Order And Look Forward To Working With You! For Details, Pls Contact Us To Quote Our Best Price<<

Product Details




Chemical Composition

Aluminum Materials Grades Chemical Components

Alloy %Si %Mg %Mn %Cu %Fe %Cr %Zn %Ti %Others %Al
EN AW-1050 A 0.25Max 0.05Max 0.05Max 0.05Max 0.40Max – 0.07Max 0.05Max – 99.5 Min
EN AW-1070 A 0.20Max 0.03Max 0.03Max 0.03Max 0.25Max – 0.07Max 0.03Max – 99.7 Min
EN AW-1100 Si+Fe 0.95 Max – 0.05 Max 0.05 – 0.20 – – 0.10 Max 0.05 Max – 99.0 Min
EN AW-2011 0.40 Max – – 5.00 – 6.00 0.70 Max – 0.30 Max – – Remainder
EN AW-2014 0.50 – 1.20 0.20 – 0.80 0.40 – 1.20 3.90 – 5.00 0.70 Max 0.10 Max 0.25 Max 0.15 Max – Remainder
EN AW-2024 0.50 Max 1.20 -1.80 0.30 – 0.90 3.80 – 4.90 0.50 Max 0.10 Max 0.25 Max 0.15 Max 0.15 Max Remainder
EN AW-3003 0.60 Max – 1.00 – 1.50 0.05 – 0.20 0.70 Max – 0.10 Max – 0.15 Max Remainder
EN AW-3103 0.50 Max 0.30 Max 0.90 – 1.50 0.10 Max 0.70 Max 0.10 Max 0.20 Max 0.10 Max – Remainder
EN AW-6101A 0.30 – 0.7 0.40 – 0.90 0.03 Max 0.05 Max 0.40 Max – – – 0.10 Max Remainder
EN AW-6005 0.60 – 0.90 0.40 – 0.60 0.10 Max 0.10 Max 0.35 Max 0.10 Max 0.10 Max 0.10 Max – Remainder
EN AW-6351 0.70 – 1.30 0.40 – 0.80 0.40 – 0.80 0.10 Max 0.50 Max – 0.20 Max 0.20 Max 0.15 Max Remainder
EN AW-6060 0.30 – 0.60 0.35 – 0.60 0.10 Max 0.10 Max 0.10 – 0.30 0.05 Max 0.15 Max 0.10 Max – Remainder
EN AW-6061 0.40 – 0.80 0.80 – 1.20 0.15 Max 0.15 – 0.40 0.70 Max 0.04 – 0.35 0.25 Max 0.15 Max – Remainder
EN AW-6063 0.20 – 0.60 0.45 – 0.90 0.10 Max 0.10 Max 0.35 Max 0.10 Max 0.10 Max 0.10 Max – Remainder
EN AW-6082 0.70 – 1.30 0.60 -1.20 0.40 – 1.00 0.10 Max 0.50 Max 0.25 Max 0.20 Max 0.10 Max – Remainder

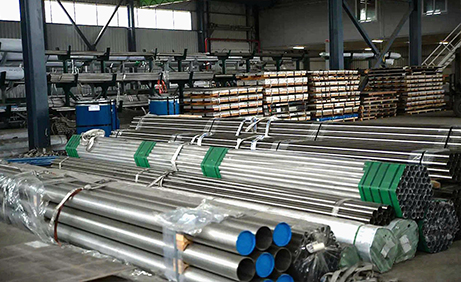

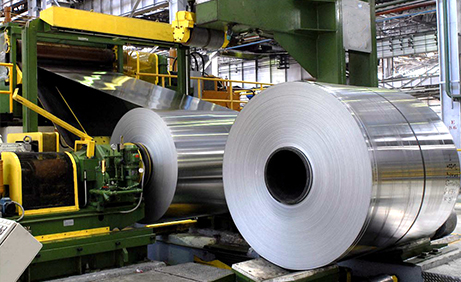

Factory workshop
