Name: 7075 Aluminum Round Pipe
SKU: -1

PRODUCT CENTER



Location： HOME | PRODUCTS | Aluminum Round Pipe Tube | 7075 Aluminum Round Pipe

Categories List





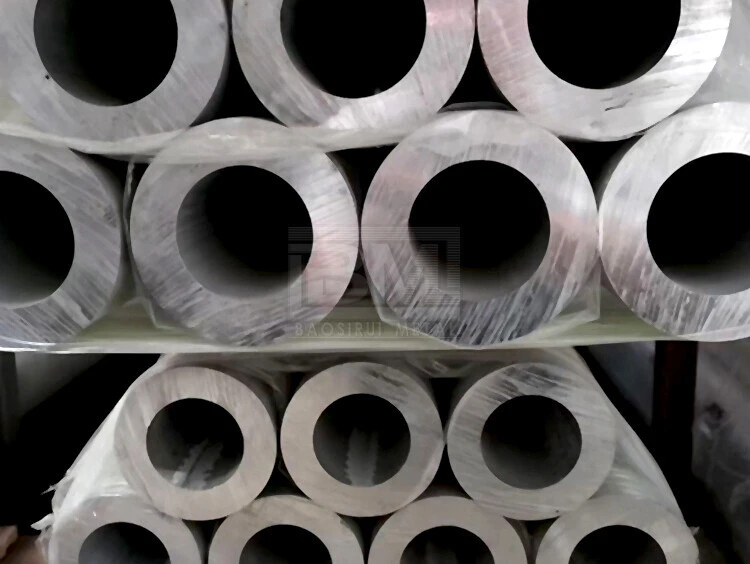

7075 Aluminum Round Pipe

● MOQ: 1 Ton Each
● Available Aluminum Pipe Grades: EN-AW 1050, 3003, 5052, 5754, 5049, 5083, 5086, 6061, 6082, 6063, 7075, 7068, 2024
● Country of Origin: China

Email:contact@baosiruimetal.com

WhatsApp:+86 133 3877 6236

Leave a message online

Product Description

7075 Aluminum Pipe Tube the advantages of its are lightweight, excellent electrical and thermal conductivity, high corrosion resistance and ductility.

BM METAL Aluminium Corporation is one of the premier aluminum tube suppliers and manufacturers in China, offering products for various application types, ranging from HVAC/R and heat exchange to mechanical and framing. Our high-strength, corrosion-resistant, high-quality aluminum tube/pipe is available in multiple-grade aluminum alloys, rectangular, round, or square forms, and comes in various widths, and thicknesses. And we also accept customization to the size and external shape required by customers.

Aluminum Round Pipe

Aluminum Square Pipe

Aluminum Flat Pipe

Aluminum Profiled Tube

At BM METAL - Extruded Aluminum Round Tube Manufacturer, we manufacture top-quality aluminum in various shapes, sizes, and grades, ensuring that you'll always find exactly what you're looking for.

Outside Diameter: 8.0~500mm for Round
Outside Diameter: 10x10mm~250x250mm for Square
Outside Diameter: 10x20mm~600x300mm for Rectangle
Wall Thickness: 0.5~80mm
Length: 1,000~6,000mm or Any Size can be customized
Surface: Anodized, Mill finished, Polished etc.
Production Process: Extruded, Cold Drawn
Form & Image: Round, Square, Rectangle
Certificates: ISO / SGS / BV
Available International Price Term:
① EXW China ② FOB China Port ③ CIF/CFR Destination Port etc.

Extruded Aluminum Round Tube Available Size Range
Size Range OD (mm)	Wall Thickness (mm)	Length (mm)
8-500mm or can be customized	0.5-80mm or can be customize	500-6000mm or can be customize

Pipe Size Designation	Schedule Number	Outside Dia (inches)	Inside Dia. (inches)	Approx.Wt. (Ibs./lineal ft.)
1/2	40	0.84	0.622	0.294
1/2	80	0.84	0.546	0.376
3/4	40	1.05	0.824	0.391
3/4	80	1.05	0.742	0.51
1	40	1.315	1.049	0.581
1	80	1.315	0.957	0.751
1–1/4	40	1.66	1.38	0.786
1-1/4	80	1.66	1.278	1.037
1–1/2	40	1.9	1.61	0.94
1-1/2	80	1.9	1.5	1.256
2	10	2.375	2.157	0.913
2	40	2.375	2.067	1.264
2	80	2.375	1.939	1.737
2–1/2	40	2.875	2.469	2.004
2-1/2	80	2.875	2.323	2.65
3	40	3.5	3.068	2.621
3	80	3.5	2.9	3.547
3–1/2	40	4	3.548	3.151
3-1/2	80	4	3.364	4.326
4	40	4.5	4.026	3.733
4	80	4.5	3.826	5.183
5	40	5.563	5.047	5.057
5	80	5.563	4.813	7.188
6	40	6.625	6.065	6.564
6	80	6.625	5.761	9.884
8	40	8.625	7.981	9.878
8	80	8.625	7.625	15.01
10	40	10.75	10.02	14.004

Product Specification and Size: Standard Specification: GB/T 6892, GB/T 6893, ASTM B221, EN754, EN 75

Available Specification:

Alloy	Temper
5xxx: 5052, 5083, 5754	O, H14, H112
6xxx: 6005, 6060, 6061, 6063, 6082, 6463	O, T4, T5, T6, T66, T651
7xxx: 7075	T6, T651

The above are standard sizes; For other specifications, please contact us;
Customization is available, and bulk orders come with discounts;
Application:
Aluminum alloy tube and pipe can be widely used in construction, machinery, electronics, sports equipment, advertising, transportation, consumer goods, furniture, aviation, military and other applications. We also provide anodizing, bending, welding, polishing and punching service;
>>Welcome To Order And Look Forward To Working With You! For Details, Pls Contact Us To Quote Our Best Price<<

Product Details

Chemical Composition

Aluminum Materials Grades Chemical Components

Alloy	%Si	%Mg	%Mn	%Cu	%Fe	%Cr	%Zn	%Ti	%Others	%Al
EN AW-1050 A	0.25Max	0.05Max	0.05Max	0.05Max	0.40Max	–	0.07Max	0.05Max	–	99.5 Min
EN AW-1070 A	0.20Max	0.03Max	0.03Max	0.03Max	0.25Max	–	0.07Max	0.03Max	–	99.7 Min
EN AW-1100	Si+Fe 0.95 Max	–	0.05 Max	0.05 – 0.20	–	–	0.10 Max	0.05 Max	–	99.0 Min
EN AW-2011	0.40 Max	–	–	5.00 – 6.00	0.70 Max	–	0.30 Max	–	–	Remainder
EN AW-2014	0.50 – 1.20	0.20 – 0.80	0.40 – 1.20	3.90 – 5.00	0.70 Max	0.10 Max	0.25 Max	0.15 Max	–	Remainder
EN AW-2024	0.50 Max	1.20 -1.80	0.30 – 0.90	3.80 – 4.90	0.50 Max	0.10 Max	0.25 Max	0.15 Max	0.15 Max	Remainder
EN AW-3003	0.60 Max	–	1.00 – 1.50	0.05 – 0.20	0.70 Max	–	0.10 Max	–	0.15 Max	Remainder
EN AW-3103	0.50 Max	0.30 Max	0.90 – 1.50	0.10 Max	0.70 Max	0.10 Max	0.20 Max	0.10 Max	–	Remainder
EN AW-6101A	0.30 – 0.7	0.40 – 0.90	0.03 Max	0.05 Max	0.40 Max	–	–	–	0.10 Max	Remainder
EN AW-6005	0.60 – 0.90	0.40 – 0.60	0.10 Max	0.10 Max	0.35 Max	0.10 Max	0.10 Max	0.10 Max	–	Remainder
EN AW-6351	0.70 – 1.30	0.40 – 0.80	0.40 – 0.80	0.10 Max	0.50 Max	–	0.20 Max	0.20 Max	0.15 Max	Remainder
EN AW-6060	0.30 – 0.60	0.35 – 0.60	0.10 Max	0.10 Max	0.10 – 0.30	0.05 Max	0.15 Max	0.10 Max	–	Remainder
EN AW-6061	0.40 – 0.80	0.80 – 1.20	0.15 Max	0.15 – 0.40	0.70 Max	0.04 – 0.35	0.25 Max	0.15 Max	–	Remainder
EN AW-6063	0.20 – 0.60	0.45 – 0.90	0.10 Max	0.10 Max	0.35 Max	0.10 Max	0.10 Max	0.10 Max	–	Remainder
EN AW-6082	0.70 – 1.30	0.60 -1.20	0.40 – 1.00	0.10 Max	0.50 Max	0.25 Max	0.20 Max	0.10 Max	–	Remainder
