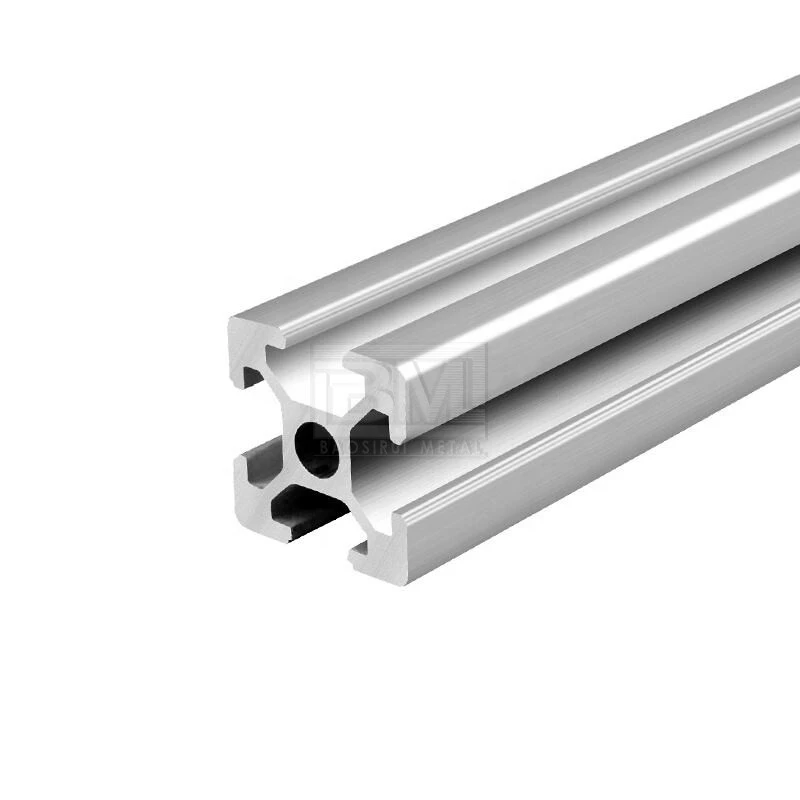

T-Slot Aluminum Extrusion

T-slot aluminum extrusion is extremely useful for a wide range of framing applications. T-slot aluminum extrusion can be used for any number of structural applications, and require no welding or special tools for assembly. Frames built from aluminum instead of steel also benefit from the aesthetics of the metal, which needs no finishing and is attractive in its natural state.
The T-slot aluminum extrusion profile system has significant product advantages from construction to maintenance, it can choose different models according to the different structures and use of precision assembly. The industrial aluminum frame structure’s design must be combined with the physical properties of the raw materials products, selecting the corresponding industrial aluminum profile, to ensure the physical properties of the T-slot aluminum extrusion Profile System has a strong degree and are safe.

Email:contact@baosiruimetal.com

WhatsApp:+86 133 3877 6236

Leave a message online

Product Description

Product Details of T-Slot Aluminum Extrusion

Alloy 1100, 3003, 6005, 6061, 6063	Finishing Anodized, powder coating, electrophoretic, PVDF and wood grain
Colors Diversified available	Temper O/F/H/T5/T6
Standard ASTM /GM

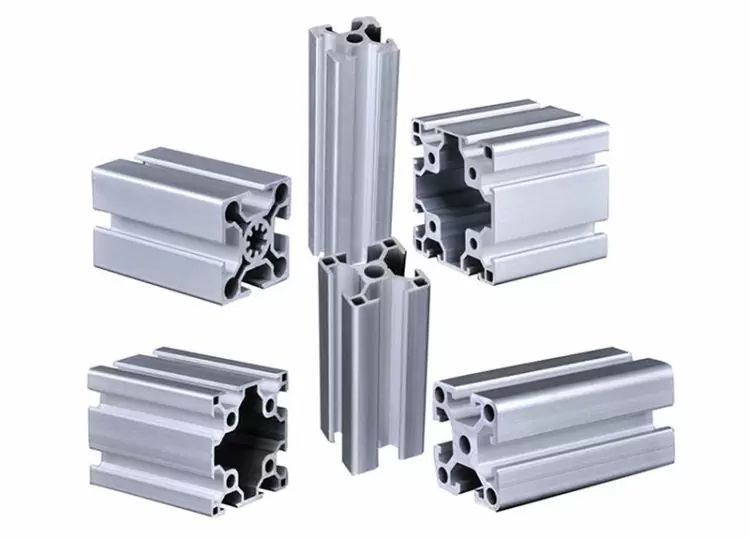

Specifications of T-Slot Aluminum Extrusion

As per the customer’s drawing, for stock specifications, please contact us to get the product list.

90 Series

T-slot aluminum extrusion is usually used for safety-guarding, testing, and inspection services to workbenches, machine frames, conveyors, CNC, and linear systems.

Weight: 6.20 kg/m.

Mass of Inertia: lx: 172.14 cm4 ly: 172.14 cm4.

Section Modulus: zx: 40.76 cm3 zy: 40.76 cm3.

T-slot width: 10.2 mm, T-slot height: 12.3 mm, Section size: 90 mm × 90 mm, Hole: φ10.2 mm, Wall thickness: 2.0 mm.

100 Series

The T-Slot Aluminum Extrusion of the S10-100100 profile is 10.2 mm, ideal for heavy-duty applications where added strength and an additional T-slot aluminum extrusion are a must, when choosing accessories or fasteners, M10 is suitable. In addition, it can be connected with 50 series profiles and other parts such as handle, end connector, caster, etc. T-slot aluminum extrusion is widely used for building blocks, clean rooms, conveyors, CNC, and other frameworks.

Weight: 11.48 kg/m

Mass of Inertia: lx: 397.83 cm4 ly: 397.83 cm4

Section Modulus: zx: 81.36 cm3 zy: 81.36 cm3

T-Slot width: 10.2 mm

T-slot height: 12.3 mm

Section size: 100 mm × 100 mm

Hole: φ10.2 mm

Wall thickness: 6.0 mm

160 Series

Usually, it would be chosen to make an equipment rack or large-scale machine beams. It can connect with 80 Series T-slot aluminum extrusion profiles.

Weight: 18.69 kg/m

Mass of Inertia: lx: 1988.54 cm4 ly: 1988.54 cm4

Section Modulus: zx: 257.13 cm3 zy: 257.13 cm3

T-slot Width: 8.2 mm, T-slot height: 12.3 mm, section size: 160 mm × 160 mm, 4 marginal holes: φ6.8 mm. Wall thickness: 4.5 mm

The Order Process of T-Slot Aluminum Extrusion

Product Details

Chemical Composition

Aluminum Materials Grades Chemical Components

Alloy	%Si	%Mg	%Mn	%Cu	%Fe	%Cr	%Zn	%Ti	%Others	%Al
EN AW-1050 A	0.25Max	0.05Max	0.05Max	0.05Max	0.40Max	–	0.07Max	0.05Max	–	99.5 Min
EN AW-1070 A	0.20Max	0.03Max	0.03Max	0.03Max	0.25Max	–	0.07Max	0.03Max	–	99.7 Min
EN AW-1100	Si+Fe 0.95 Max	–	0.05 Max	0.05 – 0.20	–	–	0.10 Max	0.05 Max	–	99.0 Min
EN AW-2011	0.40 Max	–	–	5.00 – 6.00	0.70 Max	–	0.30 Max	–	–	Remainder
EN AW-2014	0.50 – 1.20	0.20 – 0.80	0.40 – 1.20	3.90 – 5.00	0.70 Max	0.10 Max	0.25 Max	0.15 Max	–	Remainder
EN AW-2024	0.50 Max	1.20 -1.80	0.30 – 0.90	3.80 – 4.90	0.50 Max	0.10 Max	0.25 Max	0.15 Max	0.15 Max	Remainder
EN AW-3003	0.60 Max	–	1.00 – 1.50	0.05 – 0.20	0.70 Max	–	0.10 Max	–	0.15 Max	Remainder
EN AW-3103	0.50 Max	0.30 Max	0.90 – 1.50	0.10 Max	0.70 Max	0.10 Max	0.20 Max	0.10 Max	–	Remainder
EN AW-6101A	0.30 – 0.7	0.40 – 0.90	0.03 Max	0.05 Max	0.40 Max	–	–	–	0.10 Max	Remainder
EN AW-6005	0.60 – 0.90	0.40 – 0.60	0.10 Max	0.10 Max	0.35 Max	0.10 Max	0.10 Max	0.10 Max	–	Remainder
EN AW-6351	0.70 – 1.30	0.40 – 0.80	0.40 – 0.80	0.10 Max	0.50 Max	–	0.20 Max	0.20 Max	0.15 Max	Remainder
EN AW-6060	0.30 – 0.60	0.35 – 0.60	0.10 Max	0.10 Max	0.10 – 0.30	0.05 Max	0.15 Max	0.10 Max	–	Remainder
EN AW-6061	0.40 – 0.80	0.80 – 1.20	0.15 Max	0.15 – 0.40	0.70 Max	0.04 – 0.35	0.25 Max	0.15 Max	–	Remainder
EN AW-6063	0.20 – 0.60	0.45 – 0.90	0.10 Max	0.10 Max	0.35 Max	0.10 Max	0.10 Max	0.10 Max	–	Remainder
EN AW-6082	0.70 – 1.30	0.60 -1.20	0.40 – 1.00	0.10 Max	0.50 Max	0.25 Max	0.20 Max	0.10 Max	–	Remainder
