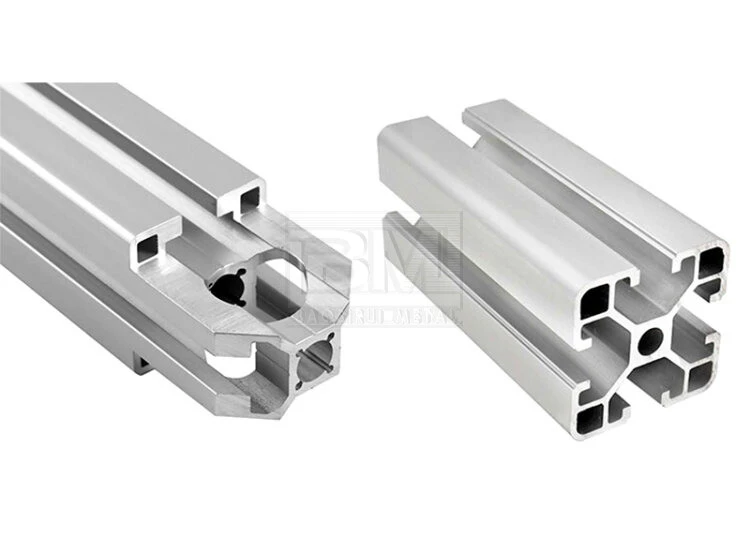

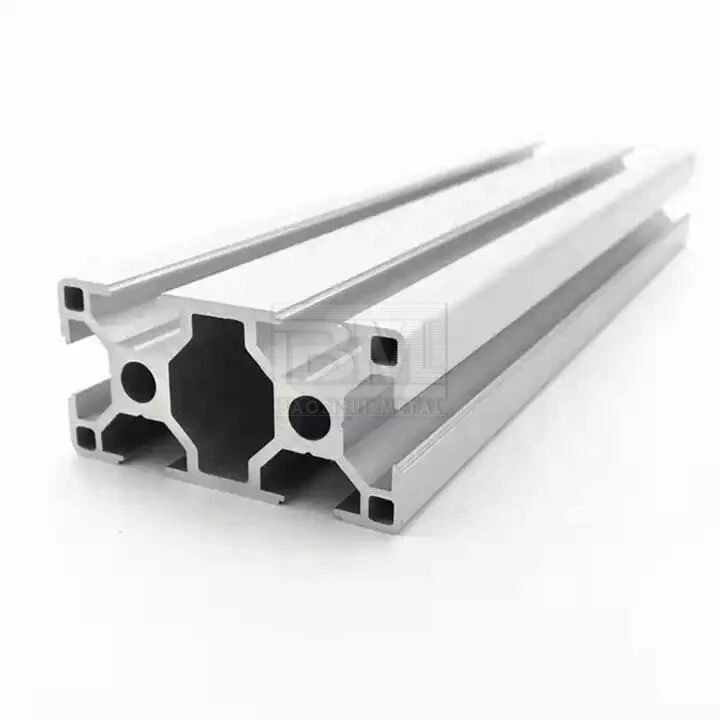

T Slot Aluminum Extrusion For Mask Machine

T slot aluminum extrusions are extremely useful for a wide range of framing applications. T-slots can be used for any number of structural applications, recently, As a result of the global epidemic, Face mask machine demand is expanding. Meanwhile, the demand for aluminum profiles is increasing, T slot aluminum extrusion for the mask production line is your best choice for the fast assembly of a masking machine. The framework of making mask machine equipment is the industrial aluminum profile.

Email:contact@baosiruimetal.com

WhatsApp:+86 133 3877 6236

Leave a message online

Product Description

Specifications of T Slot Aluminum Extrusion

As per customer’s drawing, for stock specifications, please contact us to get a product list.

Products Name	Aluminum profiles for mask machine
Material	Aluminum alloy: 4048, 6063, 6061
Types	Aluminium T slot, aluminum I beam, aluminum angle, aluminum round and square bar.
Surface Treatment	Mill finished/anodized
Temper	T5/T6
Production Capacity:	1000 Ton Per month
Loading Port:	Shanghai, China
Payment Terms:	T/T, LC
Applications	Mask machine

Alloy

1100, 3003, 6005, 6061, 6063

Finishing

Anodized, powder coating, electrophoretic, PVDF and wood grain.

Color

Diversified available.

Temper

O/F/H/T5/T6

Standard

ASTM /GM

Characteristics of T Slot Aluminum Extrusion

Building blocks with standard aluminum profiles, fasteners, and accessories, connect without machining the profile and it’s very easy to cut to length and assembly.
Cost optimization. Low-cost standard connector and profile, a no-drill connector for processing cost, no design costs, but the universal connector for versatile strength.
Fixing slots on one side, two sides, three sides, and all sides and flexible connectors & accessories. From the simplest of frameworks or mechanisms to high-precision machine building with X, Y, and Z axes, a wide range of automation products are available.

Advantages of T Slot Aluminum Extrusion

Convenience
Easy assembly
High strength
Corrosion resistance
Facilitate maintenance
Attractive appearance

Professional Aluminum Profile Extrusion Supplier – CHAL

CHAL is an advanced aluminum profile extrusion supplier, offering the industry’s most comprehensive product line. Our products are available in standard and custom shapes (solid, semi-hollow and hollows), in a complete range of structural angles, T slots, tubes channels, tees, zees, H-beams and I-beams, and seamless and structural aluminium pipe and tube.

Order Process of T Slot Aluminum Extrusion

Product Details

Chemical Composition

Aluminum Materials Grades Chemical Components

Alloy	%Si	%Mg	%Mn	%Cu	%Fe	%Cr	%Zn	%Ti	%Others	%Al
EN AW-1050 A	0.25Max	0.05Max	0.05Max	0.05Max	0.40Max	–	0.07Max	0.05Max	–	99.5 Min
EN AW-1070 A	0.20Max	0.03Max	0.03Max	0.03Max	0.25Max	–	0.07Max	0.03Max	–	99.7 Min
EN AW-1100	Si+Fe 0.95 Max	–	0.05 Max	0.05 – 0.20	–	–	0.10 Max	0.05 Max	–	99.0 Min
EN AW-2011	0.40 Max	–	–	5.00 – 6.00	0.70 Max	–	0.30 Max	–	–	Remainder
EN AW-2014	0.50 – 1.20	0.20 – 0.80	0.40 – 1.20	3.90 – 5.00	0.70 Max	0.10 Max	0.25 Max	0.15 Max	–	Remainder
EN AW-2024	0.50 Max	1.20 -1.80	0.30 – 0.90	3.80 – 4.90	0.50 Max	0.10 Max	0.25 Max	0.15 Max	0.15 Max	Remainder
EN AW-3003	0.60 Max	–	1.00 – 1.50	0.05 – 0.20	0.70 Max	–	0.10 Max	–	0.15 Max	Remainder
EN AW-3103	0.50 Max	0.30 Max	0.90 – 1.50	0.10 Max	0.70 Max	0.10 Max	0.20 Max	0.10 Max	–	Remainder
EN AW-6101A	0.30 – 0.7	0.40 – 0.90	0.03 Max	0.05 Max	0.40 Max	–	–	–	0.10 Max	Remainder
EN AW-6005	0.60 – 0.90	0.40 – 0.60	0.10 Max	0.10 Max	0.35 Max	0.10 Max	0.10 Max	0.10 Max	–	Remainder
EN AW-6351	0.70 – 1.30	0.40 – 0.80	0.40 – 0.80	0.10 Max	0.50 Max	–	0.20 Max	0.20 Max	0.15 Max	Remainder
EN AW-6060	0.30 – 0.60	0.35 – 0.60	0.10 Max	0.10 Max	0.10 – 0.30	0.05 Max	0.15 Max	0.10 Max	–	Remainder
EN AW-6061	0.40 – 0.80	0.80 – 1.20	0.15 Max	0.15 – 0.40	0.70 Max	0.04 – 0.35	0.25 Max	0.15 Max	–	Remainder
EN AW-6063	0.20 – 0.60	0.45 – 0.90	0.10 Max	0.10 Max	0.35 Max	0.10 Max	0.10 Max	0.10 Max	–	Remainder
EN AW-6082	0.70 – 1.30	0.60 -1.20	0.40 – 1.00	0.10 Max	0.50 Max	0.25 Max	0.20 Max	0.10 Max	–	Remainder
