Aluminum Profile

● MOQ: 1 Ton Each
● Available Aluminum Profile Grades: EN-AW 1050, 1060, 1100, 3003, 5052, 6060, 6005A, 6063, 6061, 6106
● Country of Origin: China

Email:contact@baosiruimetal.com

WhatsApp:+86 133 3877 6236

Leave a message online

Product Description

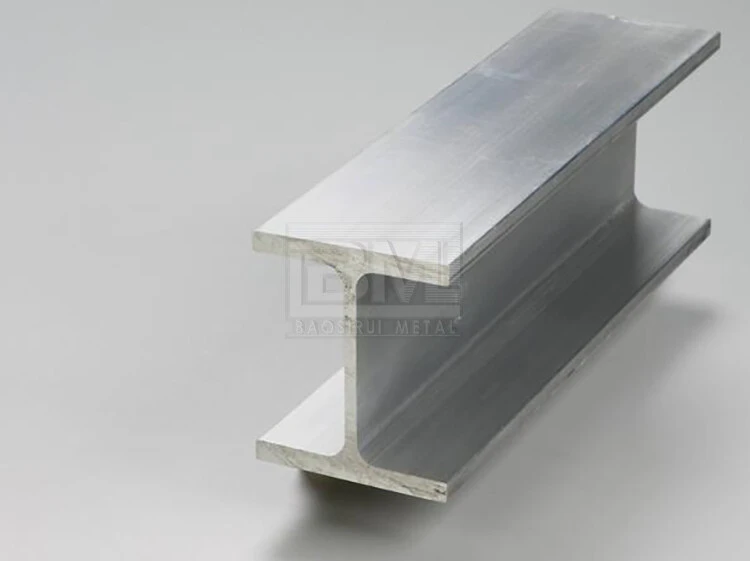

6063-T5 Aluminum Association I Beam Description

The main alloying elements of the aluminum alloy 6061 are magnesium and silicon and form the Mg2Si phase. If it contains a certain amount of manganese and chromium, it can neutralize the harmful effect of iron. Sometimes a small amount of copper or zinc is added to increase the strength of the alloy without significantly reducing the corrosion resistance. There is still a tiny amount in the conductive material. Copper can offset the adverse effects of titanium and iron on conductivity. Zirconium or titanium can refine grains and control recrystallized structures. This component improves machinability, lead, and antimony. The Mg2Si is solid-dissolved in aluminum, which gives the alloy an artificial age-hardening function.

Alloy

● 6063 T5, 6061 T5, 6061 T6

Characteristics of 6063-T5 Aluminum Association I Beam

Aluminum alloy 6061 is a medium to high-strength heat-treatable alloy with a strength higher than 6005A. It has very good corrosion resistance and very good weldability although reduced strength in the weld zone. It has medium fatigue strength. 6061 alloy is the most commonly used alloy. High strength & good welding, not good formability. If formed, needs a very gradual radius.

Specifications of 6063 T5 Aluminium Association I Beam

Specifications of 6061 T5 Aluminium Association I Beam

Size	Weight Per Square Foot (Lbs)	Depth	Width (Flange)	Thickness (Web)
3″ x .150	2.03	3″	2.50″	.150″
4″ x .170	2.793	4″	3.00″	.170″
5″ x .190	3.7	5″	3.50″	.190″
6″ x .190	4.03	6″	4.00″	.190″
6″ x .210	4.692	6″	4.00″	.210″
7″ x .230	5.8	7″	4.50″	.230″
8″ x .230	6.181	8″	5.00″	.230″
8″ x .250	7.023	8″	5.00″	.250″
10″ x .250	8.646	10″	6.00″	.250″
12″ x .310	14.29	12″	7.00″	.310″

6061-T5 Aluminum Association I Beam Manufacturer

As a professional aluminum alloy manufacturer and supplier in China, CHAL is one of the TOP5 aluminum sheet factories. We are one of the biggest Chinese aluminum profiles suppliers of 6061 T5 aluminum. We also produce slit coil, aluminum strip, coated aluminum coil, aluminum plate, aluminum sheet metal, anodized aluminum sheet, embossed aluminum sheet, etc.

CHAL provides you with first-rate quality, attractive and reasonable prices. Excellent surface quality and package, fast delivery. If you are looking for a 6061-T5 aluminium supplier in China, CHAL is your best choice. We promise you the best price and excellent service. For more detailed information, please feel free to contact us directly.

The Order Process of 6061 T5 Aluminium Association I Beam

Product Details

Chemical Composition

Aluminum Materials Grades Chemical Components

Alloy	%Si	%Mg	%Mn	%Cu	%Fe	%Cr	%Zn	%Ti	%Others	%Al
EN AW-1050 A	0.25Max	0.05Max	0.05Max	0.05Max	0.40Max	–	0.07Max	0.05Max	–	99.5 Min
EN AW-1070 A	0.20Max	0.03Max	0.03Max	0.03Max	0.25Max	–	0.07Max	0.03Max	–	99.7 Min
EN AW-1100	Si+Fe 0.95 Max	–	0.05 Max	0.05 – 0.20	–	–	0.10 Max	0.05 Max	–	99.0 Min
EN AW-2011	0.40 Max	–	–	5.00 – 6.00	0.70 Max	–	0.30 Max	–	–	Remainder
EN AW-2014	0.50 – 1.20	0.20 – 0.80	0.40 – 1.20	3.90 – 5.00	0.70 Max	0.10 Max	0.25 Max	0.15 Max	–	Remainder
EN AW-2024	0.50 Max	1.20 -1.80	0.30 – 0.90	3.80 – 4.90	0.50 Max	0.10 Max	0.25 Max	0.15 Max	0.15 Max	Remainder
EN AW-3003	0.60 Max	–	1.00 – 1.50	0.05 – 0.20	0.70 Max	–	0.10 Max	–	0.15 Max	Remainder
EN AW-3103	0.50 Max	0.30 Max	0.90 – 1.50	0.10 Max	0.70 Max	0.10 Max	0.20 Max	0.10 Max	–	Remainder
EN AW-6101A	0.30 – 0.7	0.40 – 0.90	0.03 Max	0.05 Max	0.40 Max	–	–	–	0.10 Max	Remainder
EN AW-6005	0.60 – 0.90	0.40 – 0.60	0.10 Max	0.10 Max	0.35 Max	0.10 Max	0.10 Max	0.10 Max	–	Remainder
EN AW-6351	0.70 – 1.30	0.40 – 0.80	0.40 – 0.80	0.10 Max	0.50 Max	–	0.20 Max	0.20 Max	0.15 Max	Remainder
EN AW-6060	0.30 – 0.60	0.35 – 0.60	0.10 Max	0.10 Max	0.10 – 0.30	0.05 Max	0.15 Max	0.10 Max	–	Remainder
EN AW-6061	0.40 – 0.80	0.80 – 1.20	0.15 Max	0.15 – 0.40	0.70 Max	0.04 – 0.35	0.25 Max	0.15 Max	–	Remainder
EN AW-6063	0.20 – 0.60	0.45 – 0.90	0.10 Max	0.10 Max	0.35 Max	0.10 Max	0.10 Max	0.10 Max	–	Remainder
EN AW-6082	0.70 – 1.30	0.60 -1.20	0.40 – 1.00	0.10 Max	0.50 Max	0.25 Max	0.20 Max	0.10 Max	–	Remainder
