PRODUCT CENTER

Categories List

5005 Aluminum Checker Plate
5005 Aluminum Checker Plate
5005 Aluminum Checker Plate
5005 Aluminum Checker Plate
5005 Aluminum Checker Plate
5005 Aluminum Checker Plate
5005 Aluminum Checker Plate
● MOQ: 1 Ton Each
● Available Aluminum Sheet Grades: EN-AW 1050, 1060, 1070, 1100, 3003, 3005, 3105, 5005, 5052, 5754, 5083, 5086, 5182, 5049, 5251, 5454, 6061, 6082, 6060, 6063, 7075, 7068, 8011, 2024
● Country of Origin: China
Email:contact@baosiruimetal.com
WhatsApp:+86 133 3877 6236
Leave a message online
Product Description

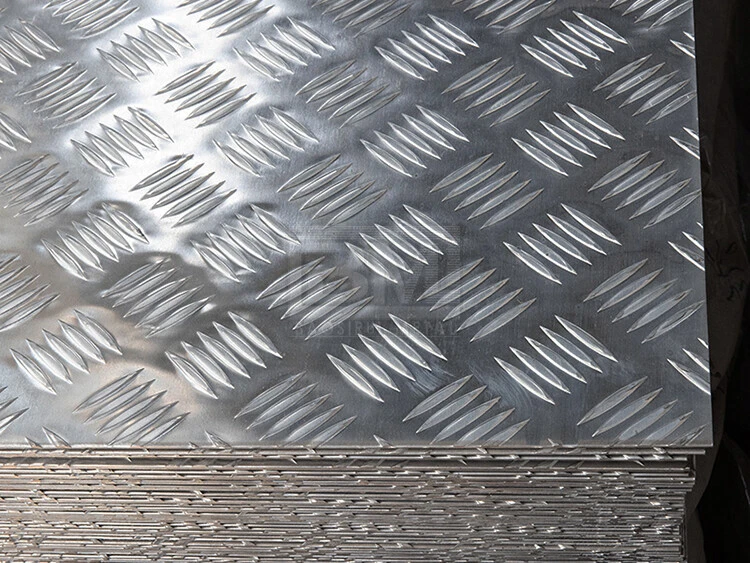

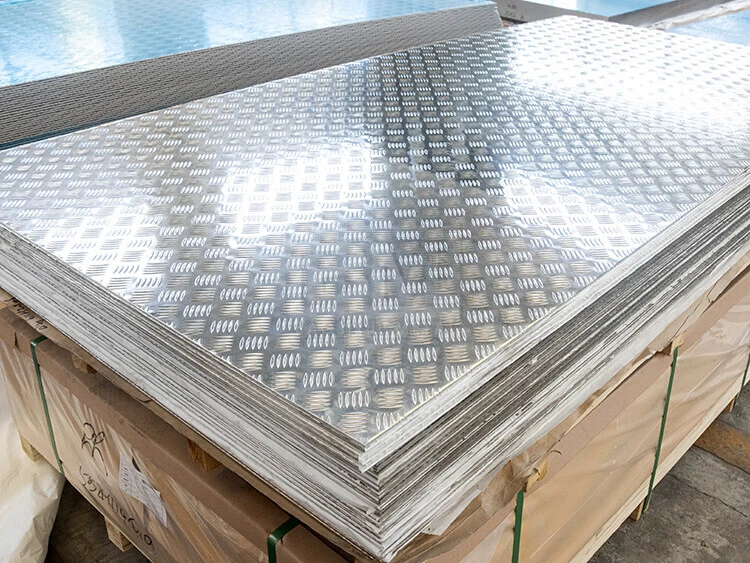

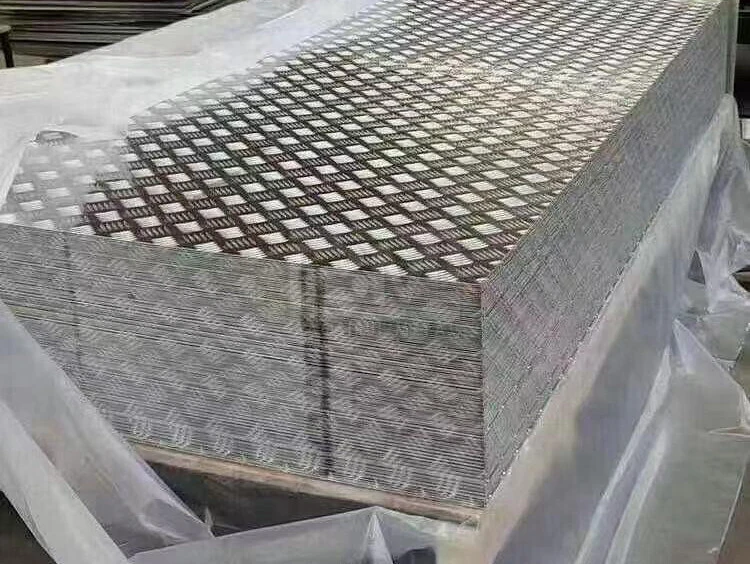

5005 Aluminium Tread Checker Plate, also known as floor plate, or checker plate, is a popular material used in various industries. BM METAL offers aluminium treadplate in H22, H114, F and O tempers.

BM METAL ALUMINUM stocks a range of aluminium treadplate thicknesses, sizes, and finishes to meet different needs and requirements. Our treadplate is available in five bar, 3 bar & propellor pattern.

At BM METAL - Aluminum Checker Plate Manufacturer, we manufacture top-quality aluminum in various shapes, sizes, and grades, ensuring that you'll always find exactly what you're looking for.

  • Thickness: 1- 6mm or as required
  • Width: 500 - 2000mm or as required
  • Length: 500 - 6000mm or as required
  • Any Size can be customized according to your needs
  • Surface: Mill Finish, Bright Finish
  • Surface Protection: Paper interleaved, PE/PVC filming (if specified)
  • Pattern Type: Small Five Bar, Big Five Bar, Diamond
  • Available International Price Term:

    ① EXW China ② FOB China Port ③ CIF/CFR Destination Port etc.


5005 Aluminum Checker Plates Dimensions
ThicknessThicknessThicknessThicknessThicknessThickness
1.0mm1.2mm1.5mm2.0mm2.5mm3.0mm
4.0mm5.0mm6.0mmand so on
Pattern TypeSmall Five BarBig Five BarDiamond
Pattern Heigh1.0mm +/-0.4mm1.0mm +/-0.4mm1.0mm +/-0.4mm
Pattern Length35mm +/-3.0mm45mm +/-3.0mm33mm +/-2.0mm
Thickness: 1 - 6mm       Standard Size of Width x Length: 1000x2000mm / 1219x2438mm (4'x8' and 48''x96'') / 1250x2500mm / 1500x3000mm / 1524x3048mm (5'x10' and 60''x120'') or Any cut to size
The above are standard sizes;            For other specifications, please contact us;          Customization is available, and bulk orders come with discounts;



AlloyTemper
1xxx: 1050, 1050A, 1060, 1100O, H12, H14, H16, H18, H22, H24, H26, H28, H111
3xxx: 3003, 3004, 3005, 3105O, H12, H14, H16, H18, H22, H24, H26, H28, H111
5xxx: 5005, 5052, 5754, 5083, 5086, 5182, 5049, 5251, 5454O, H12, H14, H16, H18, H22, H24, H26, H28, H111
6xxx: 6061, 6063, 6082T4, T6, T451, T651
2xxx: 2014, 2024T3, T351, T4
7xxx: 7075, 7068T6, T651


>>Welcome To Order And Look Forward To Working With You! For Product Details, Please Contact Us To Quote Our Best Price<<

Product Details




Aluminium Tread Checker Plate also known as floor plate, or checker plate, is a popular material used in various industries. It is a lightweight and durable metal that is resistant to corrosion and can withstand harsh environments. The unique diamond-shaped pattern on the surface of the plate provides enhanced slip resistance, making it ideal for applications where safety is a top priority. Aluminium treadplate can be used for flooring, stairs, ramps, truck beds, and other industrial and commercial uses. It is available in a range of thicknesses, sizes, and finishes to meet different needs and requirements.

Chemical Composition

Aluminum Materials Grades Chemical Components

Alloy %Si %Mg %Mn %Cu %Fe %Cr %Zn %Ti %Others %Al
EN AW-1050 A 0.25Max 0.05Max 0.05Max 0.05Max 0.40Max – 0.07Max 0.05Max – 99.5 Min
EN AW-1070 A 0.20Max 0.03Max 0.03Max 0.03Max 0.25Max – 0.07Max 0.03Max – 99.7 Min
EN AW-1100 Si+Fe 0.95 Max – 0.05 Max 0.05 – 0.20 – – 0.10 Max 0.05 Max – 99.0 Min
EN AW-2011 0.40 Max – – 5.00 – 6.00 0.70 Max – 0.30 Max – – Remainder
EN AW-2014 0.50 – 1.20 0.20 – 0.80 0.40 – 1.20 3.90 – 5.00 0.70 Max 0.10 Max 0.25 Max 0.15 Max – Remainder
EN AW-2024 0.50 Max 1.20 -1.80 0.30 – 0.90 3.80 – 4.90 0.50 Max 0.10 Max 0.25 Max 0.15 Max 0.15 Max Remainder
EN AW-3003 0.60 Max – 1.00 – 1.50 0.05 – 0.20 0.70 Max – 0.10 Max – 0.15 Max Remainder
EN AW-3103 0.50 Max 0.30 Max 0.90 – 1.50 0.10 Max 0.70 Max 0.10 Max 0.20 Max 0.10 Max – Remainder
EN AW-6101A 0.30 – 0.7 0.40 – 0.90 0.03 Max 0.05 Max 0.40 Max – – – 0.10 Max Remainder
EN AW-6005 0.60 – 0.90 0.40 – 0.60 0.10 Max 0.10 Max 0.35 Max 0.10 Max 0.10 Max 0.10 Max – Remainder
EN AW-6351 0.70 – 1.30 0.40 – 0.80 0.40 – 0.80 0.10 Max 0.50 Max – 0.20 Max 0.20 Max 0.15 Max Remainder
EN AW-6060 0.30 – 0.60 0.35 – 0.60 0.10 Max 0.10 Max 0.10 – 0.30 0.05 Max 0.15 Max 0.10 Max – Remainder
EN AW-6061 0.40 – 0.80 0.80 – 1.20 0.15 Max 0.15 – 0.40 0.70 Max 0.04 – 0.35 0.25 Max 0.15 Max – Remainder
EN AW-6063 0.20 – 0.60 0.45 – 0.90 0.10 Max 0.10 Max 0.35 Max 0.10 Max 0.10 Max 0.10 Max – Remainder
EN AW-6082 0.70 – 1.30 0.60 -1.20 0.40 – 1.00 0.10 Max 0.50 Max 0.25 Max 0.20 Max 0.10 Max – Remainder
