1050 Aluminum Checker Plate
1050 Aluminum Checker Plate
1050 Aluminum Checker Plate
1050 Aluminum Checker Plate
1050 Aluminum Checker Plate
1050 Aluminum Checker Plate
1050 Aluminum Checker Plate
● MOQ: 1 Ton Each
● Available Aluminum Sheet Grades: EN-AW 1050, 1060, 1070, 1100, 3003, 3005, 3105, 5005, 5052, 5754, 5083, 5086, 5182, 5049, 5251, 5454, 6061, 6082, 6060, 6063, 7075, 7068, 8011, 2024
● Country of Origin: China
Email:contact@baosiruimetal.com
WhatsApp:+86 133 3877 6236
Leave a message online
Product Description

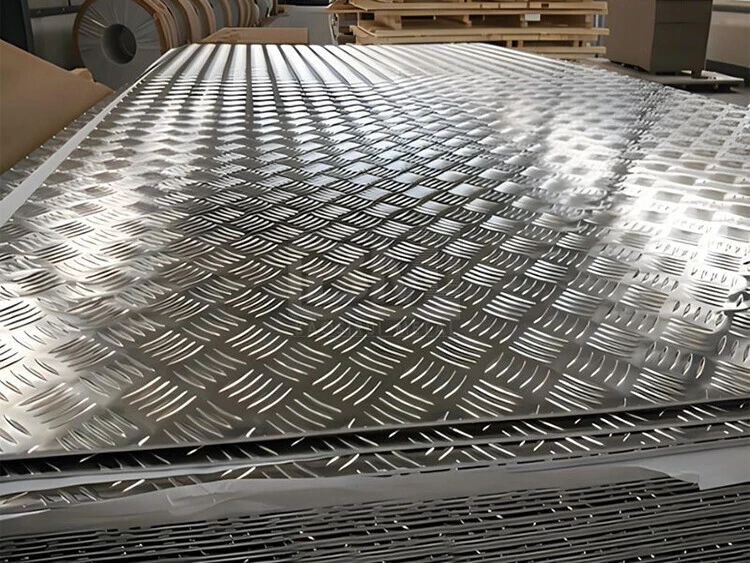

1050 Aluminium Tread Checker Plate, also known as floor plate, or checker plate, is a popular material used in various industries. BM METAL offers aluminium treadplate in H22, H114, F and O tempers.

BM METAL ALUMINUM stocks a range of aluminium treadplate thicknesses, sizes, and finishes to meet different needs and requirements. Our treadplate is available in five bar, 3 bar & propellor pattern.

At BM METAL - Aluminum Checker Plate Manufacturer, we manufacture top-quality aluminum in various shapes, sizes, and grades, ensuring that you'll always find exactly what you're looking for.

  • Thickness: 1- 6mm or as required
  • Width: 500 - 2000mm or as required
  • Length: 500 - 6000mm or as required
  • Any Size can be customized according to your needs
  • Surface: Mill Finish, Bright Finish
  • Surface Protection: Paper interleaved, PE/PVC filming (if specified)
  • Pattern Type: Small Five Bar, Big Five Bar, Diamond
  • Available International Price Term:

    ① EXW China ② FOB China Port ③ CIF/CFR Destination Port etc.


1050 Aluminum Checker Plates Dimensions
ThicknessThicknessThicknessThicknessThicknessThickness
1.0mm1.2mm1.5mm2.0mm2.5mm3.0mm
4.0mm5.0mm6.0mmand so on
Pattern TypeSmall Five BarBig Five BarDiamond
Pattern Heigh1.0mm +/-0.4mm1.0mm +/-0.4mm1.0mm +/-0.4mm
Pattern Length35mm +/-3.0mm45mm +/-3.0mm33mm +/-2.0mm
Thickness: 1 - 6mm       Standard Size of Width x Length: 1000x2000mm / 1219x2438mm (4'x8' and 48''x96'') / 1250x2500mm / 1500x3000mm / 1524x3048mm (5'x10' and 60''x120'') or Any cut to size
The above are standard sizes;            For other specifications, please contact us;          Customization is available, and bulk orders come with discounts;



AlloyTemper
1xxx: 1050, 1050A, 1060, 1100O, H12, H14, H16, H18, H22, H24, H26, H28, H111
3xxx: 3003, 3004, 3005, 3105O, H12, H14, H16, H18, H22, H24, H26, H28, H111
5xxx: 5005, 5052, 5754, 5083, 5086, 5182, 5049, 5251, 5454O, H12, H14, H16, H18, H22, H24, H26, H28, H111
6xxx: 6061, 6063, 6082T4, T6, T451, T651
2xxx: 2014, 2024T3, T351, T4
7xxx: 7075, 7068T6, T651


>>Welcome To Order And Look Forward To Working With You! For Product Details, Please Contact Us To Quote Our Best Price<<

Product Details




Aluminium Tread Checker Plate also known as floor plate, or checker plate, is a popular material used in various industries. It is a lightweight and durable metal that is resistant to corrosion and can withstand harsh environments. The unique diamond-shaped pattern on the surface of the plate provides enhanced slip resistance, making it ideal for applications where safety is a top priority. Aluminium treadplate can be used for flooring, stairs, ramps, truck beds, and other industrial and commercial uses. It is available in a range of thicknesses, sizes, and finishes to meet different needs and requirements.

Chemical Composition

Aluminum Materials Grades Chemical Components

Alloy %Si %Mg %Mn %Cu %Fe %Cr %Zn %Ti %Others %Al
EN AW-1050 A 0.25Max 0.05Max 0.05Max 0.05Max 0.40Max – 0.07Max 0.05Max – 99.5 Min
EN AW-1070 A 0.20Max 0.03Max 0.03Max 0.03Max 0.25Max – 0.07Max 0.03Max – 99.7 Min
EN AW-1100 Si+Fe 0.95 Max – 0.05 Max 0.05 – 0.20 – – 0.10 Max 0.05 Max – 99.0 Min
EN AW-2011 0.40 Max – – 5.00 – 6.00 0.70 Max – 0.30 Max – – Remainder
EN AW-2014 0.50 – 1.20 0.20 – 0.80 0.40 – 1.20 3.90 – 5.00 0.70 Max 0.10 Max 0.25 Max 0.15 Max – Remainder
EN AW-2024 0.50 Max 1.20 -1.80 0.30 – 0.90 3.80 – 4.90 0.50 Max 0.10 Max 0.25 Max 0.15 Max 0.15 Max Remainder
EN AW-3003 0.60 Max – 1.00 – 1.50 0.05 – 0.20 0.70 Max – 0.10 Max – 0.15 Max Remainder
EN AW-3103 0.50 Max 0.30 Max 0.90 – 1.50 0.10 Max 0.70 Max 0.10 Max 0.20 Max 0.10 Max – Remainder
EN AW-6101A 0.30 – 0.7 0.40 – 0.90 0.03 Max 0.05 Max 0.40 Max – – – 0.10 Max Remainder
EN AW-6005 0.60 – 0.90 0.40 – 0.60 0.10 Max 0.10 Max 0.35 Max 0.10 Max 0.10 Max 0.10 Max – Remainder
EN AW-6351 0.70 – 1.30 0.40 – 0.80 0.40 – 0.80 0.10 Max 0.50 Max – 0.20 Max 0.20 Max 0.15 Max Remainder
EN AW-6060 0.30 – 0.60 0.35 – 0.60 0.10 Max 0.10 Max 0.10 – 0.30 0.05 Max 0.15 Max 0.10 Max – Remainder
EN AW-6061 0.40 – 0.80 0.80 – 1.20 0.15 Max 0.15 – 0.40 0.70 Max 0.04 – 0.35 0.25 Max 0.15 Max – Remainder
EN AW-6063 0.20 – 0.60 0.45 – 0.90 0.10 Max 0.10 Max 0.35 Max 0.10 Max 0.10 Max 0.10 Max – Remainder
EN AW-6082 0.70 – 1.30 0.60 -1.20 0.40 – 1.00 0.10 Max 0.50 Max 0.25 Max 0.20 Max 0.10 Max – Remainder
