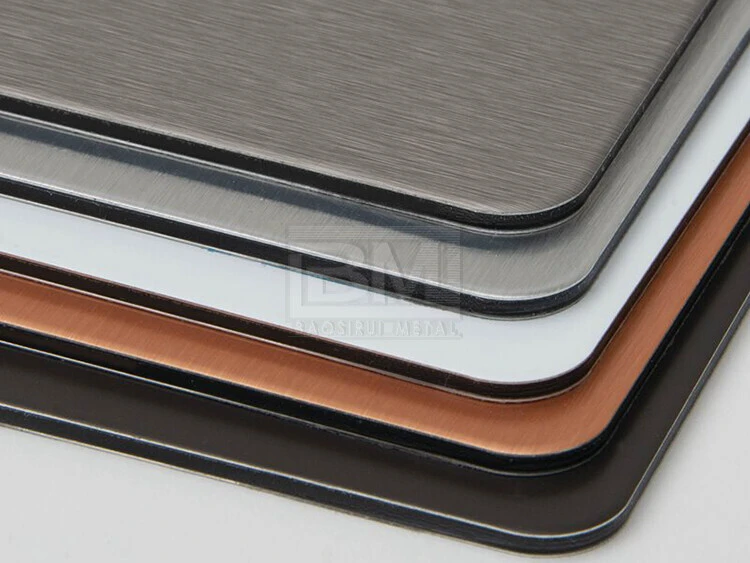

2024 ACP Aluminum Composite Panels

● MOQ: 1 Ton Each
● Available ACP Aluminum Composite Panels Grades: EN-AW 1050, 1060, 1070, 1100, 3003, 3005, 3105, 5005, 5052, 5754, 5083, 5086, 5182, 5049, 5251, 5454, 6061, 6082, 6060, 6063, 7075, 7068, 8011, 2024
● Country of Origin: China

Email:contact@baosiruimetal.com

WhatsApp:+86 133 3877 6236

Leave a message online

Product Description

Product Name	ACP/ACM Aluminum Composite Plate
Standard	ASTM E84,ASTM D1781,EN 13501-1,EN 438-9,GB/T 17748-2016,GB/T 22412
Panel Thickness	2mm,3mm,4mm,5mm,6mm
Panel Width	1220mm,1250mm,1500mm etc.
Panel Length	2440mm(normal),up to 6500mm
Bending Strength	50-120 Mpa
Bond Strength	> 0.8 N/mm² to 5 N / mm²
Coefficient of thermal expansion	22x10 ^ -6 / ℃ to 35x10 ^ -6 / ℃
Aluminum Thickness	0.3mm,0.4mm,0.5mm
Aluminum Material	AA1100,AA3003,AA5005
Aluminum Coating	PE,PVDF,FEVE
Core	Recycle PE Core/Fireproof PE Core/Unbreakable PE Core
Surface	Painted,Brushed,Hairline,Polished,Wooden,Marble,Mirror etc.

Approximate weight of the ACP panel(aluminum+core)

Panel Thickness	Aluminum sheet + Core
2mm	5-5.5 kg/m²
3mm	5.5-6.5 kg/m²
4mm	6.8-8 kg/m²
5-6mm	8-10 kg/m²

Product Structure

Applications

Product Details

Chemical Composition

Aluminum Materials Grades Chemical Components

Alloy	%Si	%Mg	%Mn	%Cu	%Fe	%Cr	%Zn	%Ti	%Others	%Al
EN AW-1050 A	0.25Max	0.05Max	0.05Max	0.05Max	0.40Max	–	0.07Max	0.05Max	–	99.5 Min
EN AW-1070 A	0.20Max	0.03Max	0.03Max	0.03Max	0.25Max	–	0.07Max	0.03Max	–	99.7 Min
EN AW-1100	Si+Fe 0.95 Max	–	0.05 Max	0.05 – 0.20	–	–	0.10 Max	0.05 Max	–	99.0 Min
EN AW-2011	0.40 Max	–	–	5.00 – 6.00	0.70 Max	–	0.30 Max	–	–	Remainder
EN AW-2014	0.50 – 1.20	0.20 – 0.80	0.40 – 1.20	3.90 – 5.00	0.70 Max	0.10 Max	0.25 Max	0.15 Max	–	Remainder
EN AW-2024	0.50 Max	1.20 -1.80	0.30 – 0.90	3.80 – 4.90	0.50 Max	0.10 Max	0.25 Max	0.15 Max	0.15 Max	Remainder
EN AW-3003	0.60 Max	–	1.00 – 1.50	0.05 – 0.20	0.70 Max	–	0.10 Max	–	0.15 Max	Remainder
EN AW-3103	0.50 Max	0.30 Max	0.90 – 1.50	0.10 Max	0.70 Max	0.10 Max	0.20 Max	0.10 Max	–	Remainder
EN AW-6101A	0.30 – 0.7	0.40 – 0.90	0.03 Max	0.05 Max	0.40 Max	–	–	–	0.10 Max	Remainder
EN AW-6005	0.60 – 0.90	0.40 – 0.60	0.10 Max	0.10 Max	0.35 Max	0.10 Max	0.10 Max	0.10 Max	–	Remainder
EN AW-6351	0.70 – 1.30	0.40 – 0.80	0.40 – 0.80	0.10 Max	0.50 Max	–	0.20 Max	0.20 Max	0.15 Max	Remainder
EN AW-6060	0.30 – 0.60	0.35 – 0.60	0.10 Max	0.10 Max	0.10 – 0.30	0.05 Max	0.15 Max	0.10 Max	–	Remainder
EN AW-6061	0.40 – 0.80	0.80 – 1.20	0.15 Max	0.15 – 0.40	0.70 Max	0.04 – 0.35	0.25 Max	0.15 Max	–	Remainder
EN AW-6063	0.20 – 0.60	0.45 – 0.90	0.10 Max	0.10 Max	0.35 Max	0.10 Max	0.10 Max	0.10 Max	–	Remainder
EN AW-6082	0.70 – 1.30	0.60 -1.20	0.40 – 1.00	0.10 Max	0.50 Max	0.25 Max	0.20 Max	0.10 Max	–	Remainder
